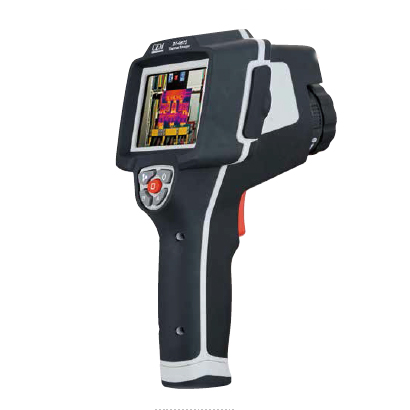

160x120 High Performance Thermal Imager - DT-9873B/9875

? 160x120 High Performance Thermal Imager with high resolution TFT color LCD display.
? Capture additional measurements fast and conveniently.
? Find problems faster and easier, and accurately identify potential issues by combining digital and IR images.
? Picture in Picture function displays thermal image super-imposed over a digital image.
? LED Flashlight allows the visual camera and fusion to be used in poorly lit environments.
? Wide Temperature Range from -20°to +400°C targeting electrical and industrial applications.
? ±2% accuracy for reliable temperature measurement.

Model Number: DT-9873B/9875

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

160*120 High Performance Thermal Imager

DT-9873B 160x120 Thermal Imager is a basic one only with full IR. 9875 160x120 High Performance Thermal Imager with innovative features and functions helps you to find easily the potential problems. You can perform infrared inspections faster and more.

Applications:

? Plant/General Maintenance

? HVAC/R

? Transportation/Automotive

? Cooling and Reheating

? Serving areas

? Food service Equipment

? Cold storage;

Features:
? 160x120 High Performance Thermal Imager with high resolution TFT color LCD display.
? Professional IR-optical focus system ensures that images are in good focus for optimum image clarity and scanning convenience..
? Capture additional measurements fast and conveniently.
? Meterbox analysis system—quickly identifies and keeps track of inspection locations by adding digital images of important information and surrounding areas.
? Find problems faster and easier, and accurately identify potential issues by combining digital and IR images.
? Picture in Picture function displays thermal image super-imposed over a digital image.
? LED Flashlight allows the visual camera and fusion to be used in poorly lit environments.
? Wide Temperature Range from -20°to +400°C targeting electrical and industrial applications.
? ±2% accuracy for reliable temperature measurement.
? The image rotation has the ability to automatically rotate active images.
? Audio records with the video images.
? Capacitive touch screen allows easy, productive and effective operation.
? Lithium polymer Rechargable Battery lasts >4hrs continuous use; replaceable.
? An easy-to-access thumbnail image gallery helps you to quickly review and find your thermal images.
? Area (Min/Max) Mode shows the Minimum or the Maximum temperature reading in selected area
? A conveniently located button activates the laser pointer that will help you associate the hot or cold spot in the thermal image with real physical target in the field.
? In order to adapt the device to every situation both wide angle and tele-lenses are available.
? Equipped with standard video, USB outputs as well as a removable SD card.
? The IR video can be streamed to a PC via USB.

Size (H x W x D): 243mm x 103mm x 160mm
Weight: 920g

Specifications:

Imaging and Optical Data		9873B	9875
Field of View (FOV) /Minimum Focus Distance	29.8° x 22.6°/0.2m	*	*
Spatial Resolution (IFOV)	3.33mrad	*	*
Thermal sensitivity/NETD	<0.08℃@+30℃ (+86℉)/80mK	*	*
Image Frequency	50Hz	*	*
Focus Mode	Manual	*	*
Focal Length	7.5mm	*	*
Focal Plane Array (FPA)/Spectral Range	Uncooled microbolometer/8-14μm	*	*
IR Resolution	160 x 120 pixels	*	*
Image Presentation
Display	Touch screen, 3.5 in. LCD, 320x240 pixels	*	*
Image Mode	IR image, visual image, picture in picture, image fusion	IR image only	*
Color Palettes	Iron/rainbow/grey/grey inverted/iron inverted/feather	*	*
Measurement
Temperature Range	-20 to 150 ℃ (-4 to 302 ℉)	*	*
Temperature Range	0 to 400 ℃ (-32 to 752 ℉)	*	*
Accuracy	±2 °C (±3.6°F) or ±2% of reading	*	*
Measurement Analysis
Spot	3	Center spot	*
Automatic hot/cold detection	Auto hot or cold markers	*	*
Isotherm	High/low temperature/interval detection	*	*
Measurement Corrections	Emissivity, ambient temperature, distance, relative humidity, offset temperature	*	*
Storage of Videos
Storage Media	4 Gbytes Micro SD card	*	*
Video Storage Format	Standard MPEG-4, 640x480@30fps, on memory card>60mins	*	*
Video Storage Mode	IR/visual images; simultaneous storage of IR and visual images	IR Images with audio	*
Storage of Images
Image Storage Format	Standard JPEG, including measurement data, on memory card>1000 pictures	*	*
Image Storage Mode	IR/visual images; simultaneous storage of IR and visual images	IR images with annotation (audio or text)	*
Digital Camera
Built-in Digital Camera	640x480 pixels	*	*
Built-in Digital Lens Data	FOV 62.3°	*	*
Data Communication Interfaces
Interfaces	USB-mini, audio, composite video, Micro SD slot	*	*
USB	Data transform between camera and PC	*	*
Video out	Composite (PAL and NTSC)	*	*
Power System
Battery	Lithium polymer battery, 4.5 hours operating time	*	*
Input Voltage	DC 9V to 12V	*	*
Charging System	In camera (AC adaptor)	*	*
Power Management	Automatic shutdown and sleep mode	*	*
Environmental Data
Operating Temperature Range	-20 to 50 ℃ (-4 to 122 ℉)	*	*
Storage Temperature Range	-40 to 70 ℃ (-40 to 158 ℉)	*	*
Humidity (Operating and Storage)	10%~90%	*	*
Encapsulation	IP65	*	*
Drop Test	2m	*	*
Bump	25g (IEC 60068-2-29)	*	*
Vibration	2g (IEC 60068-2-6)	*	*
Physical Data
Camera Weight incl. Battery	920g	*	*
Camera Size	243mm(L) x 103mm(W) x 160(H)	*	*
