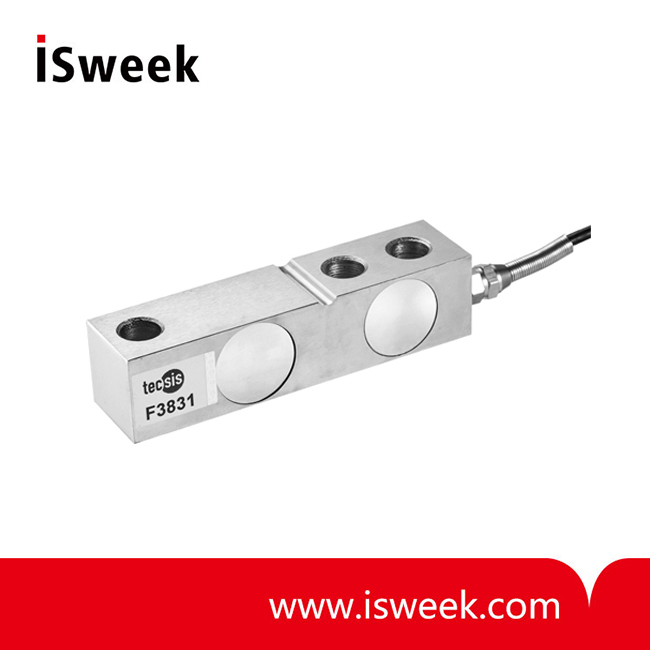

500kg to 10t Double Ended Shear Beam Load Cell - F3831
? capacities range from 500kg to 10t.
? Non-linearity: 0.03 % F.S.
? Hysteresis: 0.03 % F.S.
? Repeatability: 0.03% F.S
? Shear beam
? Made of stainless steel or alloy steel
? Long-term stability and high side load tolerance
- Model Number: F3831
- Data Sheet:
- Quantity:
- - +
Product Specification
F3831
Bending Beam

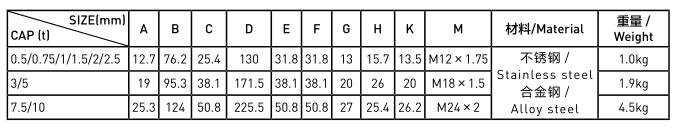

F3831 Double Ended Shear Beam Load Cell Size and Capacity
F3831 Double Ended Shear Beam Load Cell Features & Applications
? It is a kind of Double Ended Shear Beam Load Cell.
? It is made of alloy steel.
? It is fully potted with special chemical compounds to IP67(≥500kg).
? The capacity of anti deviated load and impact is very strong.
? It is available in the capacities 500kg to 10t.
? Its structure is very compact, it belongs to high capacities with low profile.
? Can be used for truck scales, rail scales, Hopper, tank weighing and Chemical, Industries of Foods, Pharmaceuticals, which has huge important on weighing and control.
F3831 Double Ended Shear Beam Load Cell Technical Parameters
|
Specifications |
Technique |
|
Rated output |
2.0 ± 1% mV/V 3.0 ± 1% mV/V (Option) |
|
Zero balance |
± 2 % F.S. |
|
Non-linearity |
0.03 % F.S. |
|
Hysteresis |
0.03 % F.S. |
|
Repeatability |
0.03% F.S |
|
Creep (30min) |
0.03% F.S. |
|
Temp.effect on output |
0.025 % F.S. / 10oC |
|
Temp.effect on zero |
0.025 % F.S. / 10oC |
|
Input impedance |
385 ± 10Ω |
|
Output impedance |
350 ± 5Ω |
|
Insulation |
≥5000MΩ/100VDC |
|
Recommended excitation |
10 V |
|
Maximum excitation |
15 V |
|
Compensated temp range |
- 10 ~ 60 oC |
|
Operation temp range |
- 20 ~ 80oC |
|
Safe overload |
150% F.S. |
|
Ultimate overload |
200% F.S. |
|
Cable size |
?5×6000 mm |
|
Protection class |
IP65 (<500 kg) IP67 (≥500 kg) |
|
Cable color code |
Input: Red(+) Black(-); Output: Green(+) White(-); |
