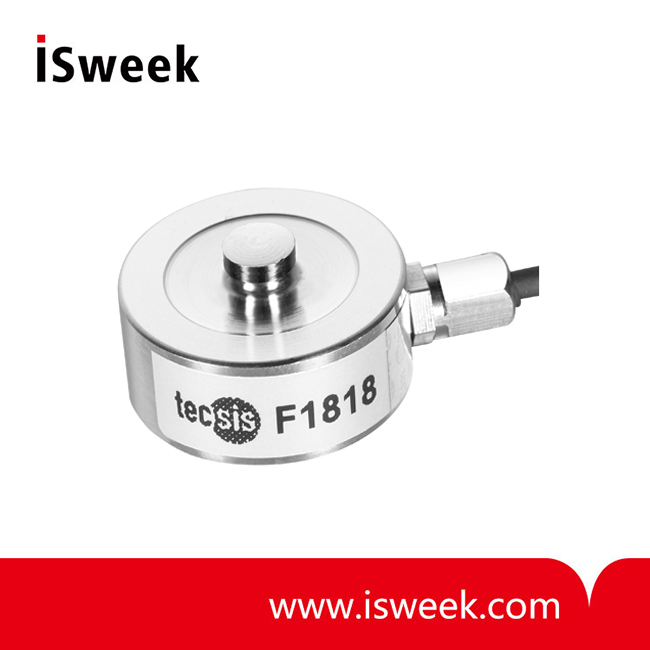

5kg to 2t Compression Load Cell - F1818

? capacities range from 5Kg to 2t
? Rated output: 1.5±10% mV / V
? Zero balance: ± 2 % F.S.
? Non-linearity: ≤0.5 % F.S.
? Hysteresis: 0.5 % F.S.
? Repeatability: 0.1 % F.S.
? Operation temp range: -20 ~ 80oC

Model Number: F1818
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

F1818
Compression Load Cell

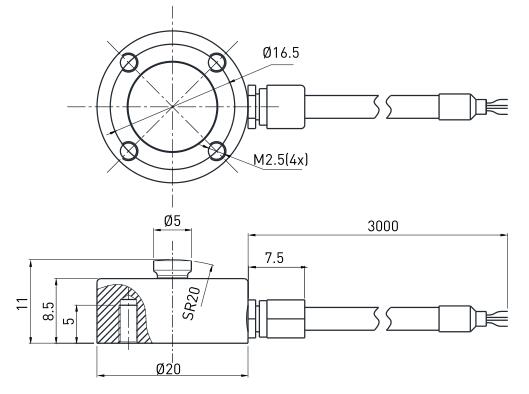

F1818 Compression Load Cell Size and Capacity

F1818 Compression Load Cell Features & Applications
? Miniature load cell, low profile.
? Designed for low profile compression service.
? Miniature type with strain gauge technology.
? Compact size with low profile.
? Its capacities range from 5Kg to 2t.
? It comes complete with 3m of load cell cable.
? Stainless steel construction.
? Fully welded seal with stainless steel cover for hostile environment applications.
? It is suitable for a wide range of applications including testing or weighing systems, and it can be put into the device, in order to monitor the force. Measure the force in the limited space.
? Various applications such as consumer electronics assembly, automation industry.

F1818 Compression Load Cell Technical Parameters

Specifications	Technique
Rated output	1.5±10% mV / V
Zero balance	± 2 % F.S.
Non-linearity	≤0.5 % F.S.
Hysteresis	0.5 % F.S.
Repeatability	0.1 % F.S.
Temp.effect on output	0.36 % F.S. / 10°C
Temp.effect on zero	0.18 % F.S. / 10°C
Input impedance	350±10Ω
Output impedance	350±5Ω
Insulation	≥5000MΩ/100VDC
Recommended excitation	5 V
Maximum excitation	10 V
Compensated temp range	-10 ~ 60 oC
Operation temp range	-20 ~ 80oC
Safe overload	150% F.S.
Ultimate overload	200 % F.S.
Cable size	?2×3000 mm
Protection class	IP64
Cable color code	Input: Red(+) Black(-); Output: Green(+) White(-);
