5kg to 500kg Double Ended Bending Beam Load Cell - F3833

? Capacities range from 5kg to 500kg
? Rated output: 2.0 ± 1% mV/V
? Zero balance: ± 2 % F.S.
? Non-linearity: 0.02% F.S.
? Hysteresis: 0.02% F.S.
? Repeatability: 0.02% F.S.
? Bell type shear beam
? Made of stainless steel
? Welded-on metal bellows, IP68

Model Number: F3833
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

F3833
Bending Beam

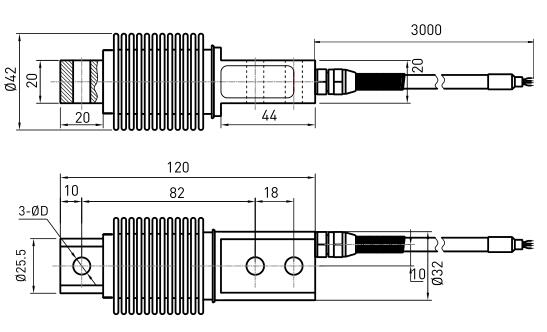

F3833 Double Ended Bending Beam Load Cell Size and Capacity

F3833 Double Ended Bending Beam Load Cell Features & Applications
? Double Ended Bending Beam Load Cell, it belongs to Compression Load Cell.
? It is made of Stainless steel
? The protection class is IP68, waterproof.
? The capacity of anti deviated load and impact is very strong.
? It is welded-on metal bellows, it is available in the capacities 5kg to 500kg.
? It comes with complete 3.0m cable.
? Compact structure, it belongs to high capacities with low profile.
? Can be used for Truck scales, rail scales, Hopper, tank weighing and Chemical, Industries of Foods, Pharmaceuticals, which has huge important on weighing and control.

F3833 Double Ended Bending Beam Load Cell Technical Parameters

Specifications	Technique
Rated output	2.0 ± 1% mV/V
Zero balance	± 2 % F.S.
Non-linearity	0.02% F.S.
Hysteresis	0.02% F.S.
Repeatability	0.02% F.S.
Creep (30min)	0.03% F.S.
Temp.effect on output	0.03% F.S. / 10°C
Temp.effect on zero	0.03% F.S. / 10°C
Input impedance	385 ± 10Ω
Output impedance	350 ± 5 Ω
Insulation	≥5000MΩ/100VDC
Recommended excitation	10V
Maximum excitation	15V
Compensated temp range	- 10 ~ 60 °C
Operation temp range	- 20 ~ 80 °C
Safe overload	150% F.S.
Ultimate overload	200% F.S.
Cable size	?5×3000 mm
Protection class	IP 68
Cable color code	Input: Red(+) Black(-); Output: Green(+) White(-);
