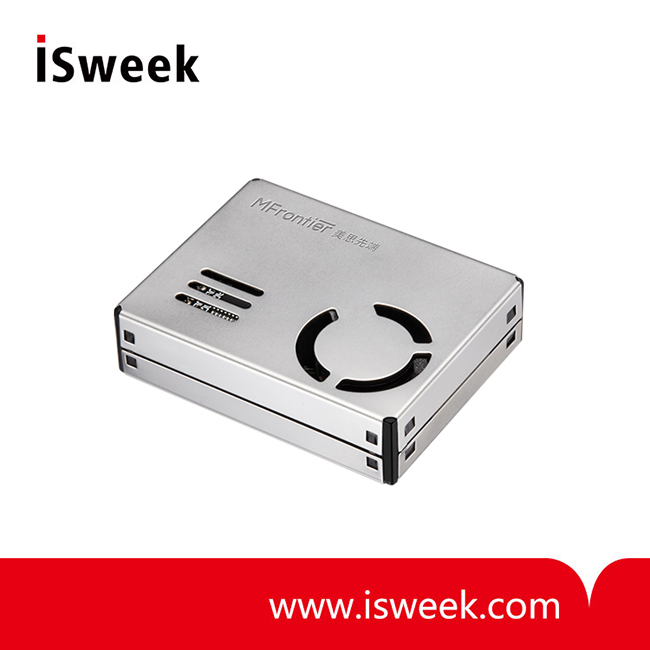

Air Laser Particulate Matter Sensor - MPM11 series
MPM11 series laser dust sensor adopts laser scattering principle, with stable light source, constant light intensity, fast response, high detection accuracy and long service life.
- Model Number: MPM11 series
- Data Sheet:
- Quantity:
- - +
Product Specification
MPM11 series laser dust sensor adopts laser scattering principle, with stable light source, constant light intensity, fast response, high detection accuracy and long service life.
Product parameters
|
Parameters |
Indexes |
|
Types of particle detection |
PM1.0, PM2.5, PM10 |
|
Particle detection diameter range |
0.3-10μm |
|
Particulate matter concentration range （PM2.5 standard value） |
0~1000μg/m3 |
|
Particle Mass Concentration Resolution |
1μg/m3 |
|
Consistency of particulate matter concentration(PM2.5 standard value) *Note |
±10%(@100 ~ 500μg/m3) ±10μg/m3 (@ 0 ~100μg/m3) |
|
Single response time |
≤1s |
|
Comprehensive response time |
≤10s |
|
DC supply voltage |
5.0V |
|
Working current |
≤85mA |
|
Stand-by current |
≤45μA |
|
Output method |
UART / IIC / PWM |
|
Storage temperature |
-30℃~+70℃ |
|
Range of working temperature |
-10℃~+60℃ |
|
Working humidity range |
0-99%RH (without condensation) |
|
Mean time between failures |
≥3 Years |
|
Dimensions |
37 . 8*34 . 8*11.8mm(L×W×H) |
Note: The particle concentration consistency data is data 2 in the communication protocol (test conditions: 25±2℃, 50±10%RH)
