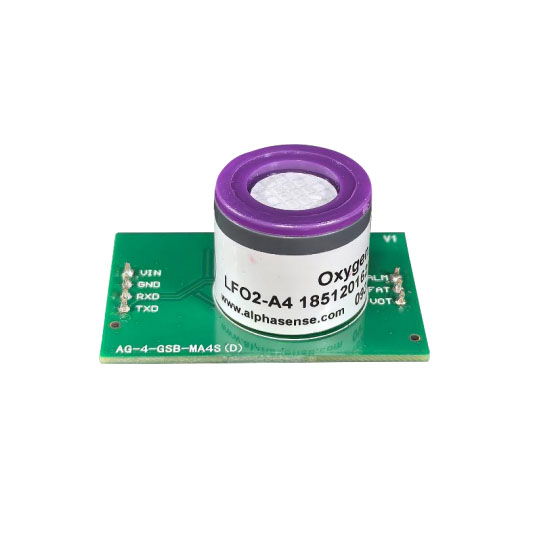

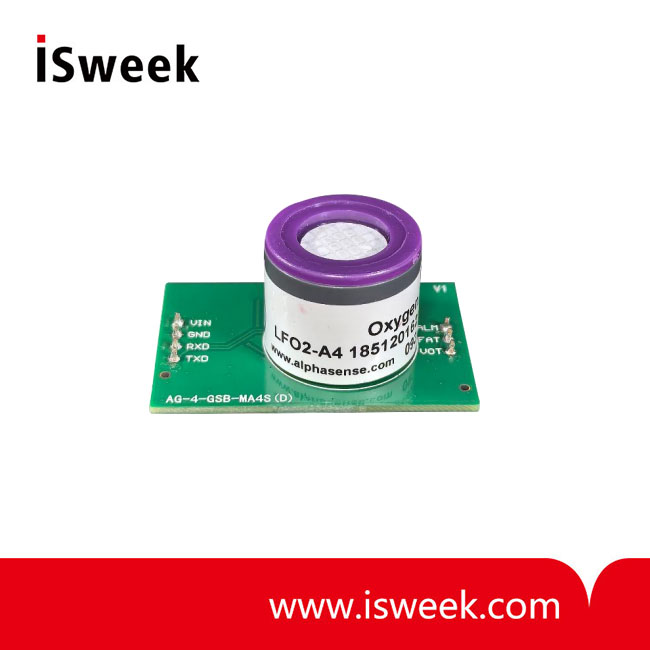

Alphasense A Series Oxygen Sensors Module - AG-4-O2-MA4S(D)
High performance
Leak FREE
Digital outputs: UART / TTL / RS232
pre-calibrated before leaving the factory
- Model Number: AG-4-O2-MA4S(D)
- Data Sheet:
- Quantity:
- - +
Product Specification
The AG-4 module uses Alphasense A-series electrochemical oxygen sensors for reliable, pre-calibrated oxygen concentration measurements. With a compact 20mm diameter, it fits well in portable gas detectors. Its high accuracy is essential for monitoring oxygen levels in safety,healthcare, air quality assessment, and industrial processes.
Alphasense A Series Oxygen Sensors Module AG-4-O2-MA4S(D) Features：
pre-calibrated before leaving the factory
Alphasense A Series Oxygen Sensors Module AG-4-O2-MA4S(D) Technical Specification：
|
Item |
Specification |
|
Model Number |
AG-4-O2-MA4S(D)
|
|
Target Gases |
Oxygen |
|
Sensing Principle |
Electrochemical |
|
Detection Range |
See corresponding sensor spec |
|
Resolution |
See corresponding sensor spec |
|
Measurement Error |
< ±5% FS |
|
Operating Voltage |
3.2 – 5.5V DC |
|
Operating Current |
≤ 500uA@5V |
|
Output Signal |
UART (+3.0V TTL) |
|
Temperature Range |
-20 - 55°C |
|
Humidity Range |
0% -90%RH |
|
Pressure Range |
1 ± 0.1 atm |
|
Storage Temperature |
10 - 20°C |
|
Size |
L*W*H=41mm*27mm*26mm |
|
Expected Life |
See corresponding sensor spec |
