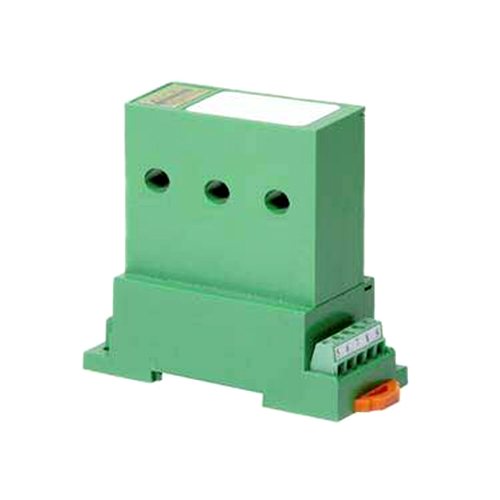

Product Specification

The CR4470 Series Average RMS Current Transducers and Transmitters are designed to provide a calibrated DC output proportional to the AC current input. Designed for multi-point current sensing, these devices provide excellent features in a high value package. Average RMS is recommended when sensing current waveforms that have a fixed frequency, and are usually for loads operated from standard utility power.

CR4470 Average RMS AC Current Transducer Features
? Analog 0 - 5 VDC output
? 24 VDC powered
? Use with external C/T's
? Highest precision available
? Connection diagram printed on case
? DIN Rail or Panel Mount

CR4470 Average RMS AC Current Transducer Specifications
? Frequency Range: 50 - 400 Hz
? Basic Accuracy: 0.5%
? 0-5 VDC : 2K ohm or Greater
? Output Load: Power Source: 24 VDC
? Insulation Voltage: 2500 VDC
? Response Time: 250 ms
? MTBF: Greater than 100 K hours
? Operating Temperature: 0°C to +50°C
? Thermal Drift: 500 PPM/°C
? Calibration: Average RMS Sensing

CR4470 Average RMS AC Current Transducer Applications
? Quickly varying motor loads
? Chopped wave form drivers
? Harmonic currents
? Phase fired controlled heaters

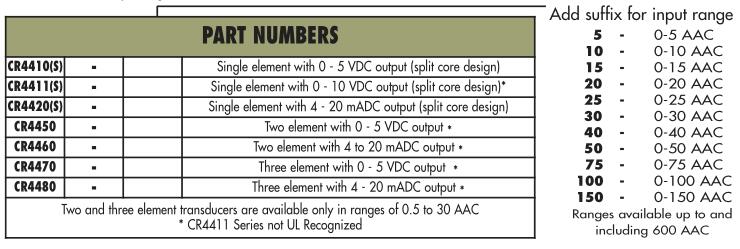

CR4470 Average RMS AC Current Transducer PART NUMBERS
