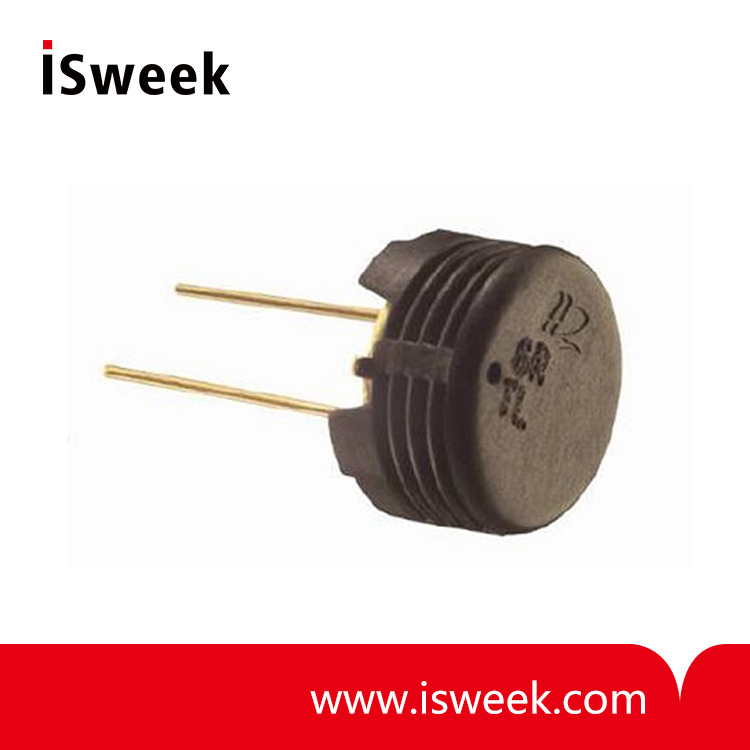

Capacitive Humidity Sensor - HS1101/HS1101LF

? Lead free component
? High reliability and long term stability
? Patented solid polymer structure
? Suitable for linear voltage or frequency output circuitry
? Fast response time and very low temperature coefficient
? Operating Temperature: -60~140°C
? Supply Voltage (Peak): 10Vac
? Humidity Operating Range: 0~100% RH

Model Number: HS1101/HS1101LF
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

HS1101/HS1101LF Capacitive Humidity Sensor

HS1101LF Capacitive Humidity Sensor DESCRIPTION
Based on a unique capacitive cell, these relative humidity sensors are designed for high volume, cost sensitive applications such as office automation, automotive cabin air control, home appliances, and industrial process control systems. They are also useful in all applications where humidity compensation is needed.

HS1101LF Capacitive Humidity Sensor FEATURES
? Full interchangeability with no calibration required in standard conditions
? Instantaneous desaturation after long periods in saturation phase
? Compatible with automatized assembly processes, including Pb free wave soldering and reflow processes
? Individual marking for compliance to stringent traceability requirements
? Part may be washed with distilled water.

HS1101LF Capacitive Humidity Sensor APPLICATIONS
? Automotive
? Home Appliance
? Printers
? Meteorology

HS1101LF Capacitive Humidity Sensor PERFORMANCE SPECS
MAXIMUM RATINGS

Ratings	Symbol	Value	Unit
Operating Temperature	Ta	-60 to 140	°C
Storage Temperature	Tstg	-60 to 140	°C
Supply Voltage (Peak)	Vs	10	Vac
Humidity Operating Range	RH	0 to 100	% RH

ELECTRICAL CHARACTERISTICS OF HUMIDITY SENSOR
(Ta=25℃, measurement frequency @10kHz / 1V unless otherwise noted)

Characteristics	Symbol	Min	Typ	Max	Unit
Humidity Measuring Range	RH	1		99	%RH
Supply Voltage	Vs			10	V
Nominal capacitance @55%RH	C	177	180	183	pF
Temperature coefficient	Tcc			0.01	pF/°C
Average Sensitivity from 33% to 75%RH	ΔC/%RH		0.31		pF/%RH
Leakage Current (Vcc=5V)	I			1	nA
Recovery time after 150 hours of condensation	tr		10		s
Humidity Hysteresis				+/-1	%RH
Long term stability	T		+/-0.5		%RH/yr
Time Constant (at 63% of signal still air) 33%RH to 80%RH	ta		3	5	s
Deviation to typical response curve (10% RH to 90%RH)			+/-2		%RH
