Carbon Dioxide Infrared Sensor - MSH-CO2

? High sensitivity to carbon dioxide
? Gas diffusion sampling
? Standard sensor size
? Temperature compensated detector elements
? Fast Response
? Wide operating temperature range

Model Number: MSH-CO2
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

DESCRIPTION

Dynament infrared sensors operate by using the NDIR principle to monitor the presence of target gas. The sensor

contains a long life tungsten filament infrared light source, an optical cavity into which gas diffuses, a dual temperature

compensated pyroelectric infrared detector and an integral thermistor to monitor the internal temperature. The infrared

source should be driven externally with a constant voltage supply switched at a fixed frequency with a 50% duty cycle.

The dual pyroelectric detector produces two output signals in response to pulsed incident radiation from the source:

? An active signal which decreases in the presence of target gas

? A reference signal which is used to monitor the intensity of the source

FEATURES

? High sensitivity to carbon dioxide

? Gas diffusion sampling

? Standard sensor size

? Temperature compensated detector elements

? Fast Response

? Wide operating temperature range

? Internal temperature signal

? Low power

SPECIFICATION

Maximum lamp Power Requirements:	5V d.c. 60mA max. (50% duty cycle source drive)
Minimum operating voltage:	3.0V d.c. (50% duty cycle source drive)
Source drive frequency:	2.0Hz minimum, 3.0 Hz typical, 4.0 Hz maximum
Active mV pk-pk output in N₂:	5.2mV typical @ 3Hz, 50% duty cycle
Reference mV pk-pk output in N₂:	4.0mV typical @ 3Hz, 50% duty cycle
Sensitivity (reduction in active signal) at 20℃, 3Hz, 50% duty cycle:	14% typical @ 5000ppm CO₂ 30% typical @ 2.0% volume CO₂
Measuring range:	0 -1000ppm up to 0 - 5% volume CO₂
Resolution:	1% of measuring range
Warm up time:	To final zero ± 100ppm : <20s @20°C (68°F) ambient To specification: < 30 minutes @20°C (68°F) ambient
Response Time T₉₀:	<30s @20℃ (68°F) ambient
Zero Repeatability:	±50ppm @20℃ (68°F) ambient
Span Repeatability:	±50ppm @20℃ (68°F) ambient
Long term zero drift:	±50ppm per month @20℃ (68°F) ambient
Operating temperature range:	-20℃to +50℃(-4°F to 122°F)
Storage temperature range:	-20℃ to +50℃ (-4°F to 122°F)
Humidity range:	0 to 95% RH non-condensing.
MTBF:	> 5 years
Temperature signal:	Integral thermistor for temperature monitoring

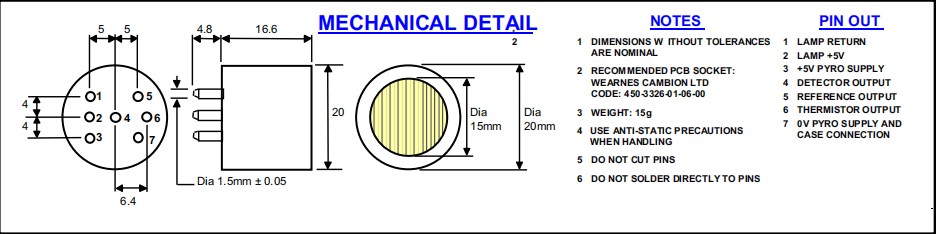

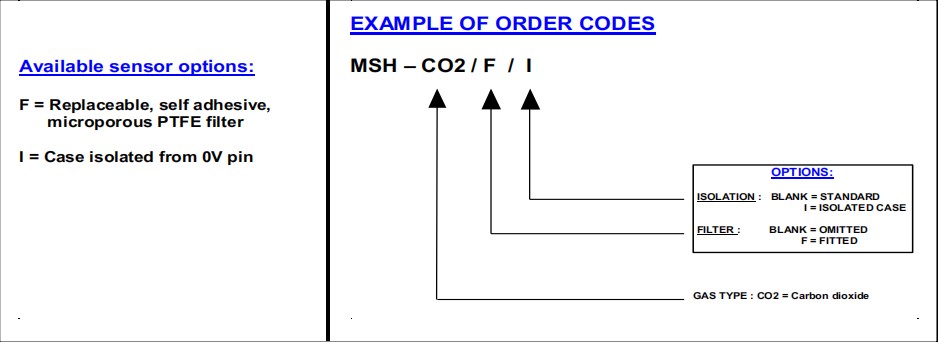

Weight:	17 grams
