Product Specification

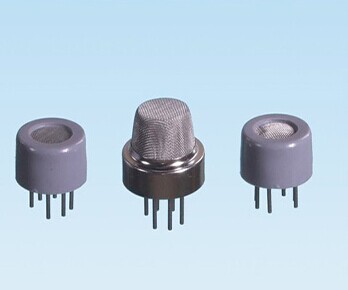

Combustible Gas Sensor MQ-K5

Specification:

MQ-K5 gas sensors used in gas sensingmaterial is tin oxide (SnO2), low conductivity in clean air. When a combustiblegas sensor in which the environment, the sensor's conductivity increases withthe
air of combustible gas concentrations increase with increasing. Using a simplecircuit to the conductivity change is converted to output signals correspondingto the concentration of the gas.MQ-K5 gas sensor for butane, propane, methanesensitivity, a better balance between methane and propane. This sensor candetect a variety of flammable gas, especially natural gas, is a suitable low-cost sensors to a variety of applications.

Character:

1. Good sensitivity in a wide concentrationrange of combustible gases

2. High sensitive with Butane, propane,methane

3. Long-life, low-cost

4. Simple drive circuit

Application:
Plants for home and gas leakage monitoring device suitable for the detection ofgas, butane , propane , methane, hydrogen and the like artificial gas .

Technical Parameter:

Gas: LPG, Methane, Coal gas
Detection range: 300 to 10000ppm
Characteristic gas: 5000ppm methane CH4
Sensitivity: R in air / R in typical gas ≥ 5
Load Resistance: 1～50KΩ adjustable
Response time: ≤ 30s
Recovery time: ≤ 60s
Heating current: ≤ 150mA
Heating voltage: 5.0V
Measuring voltage: 5～50V
Operating Conditions Ambient temperature: -20～+55℃
                        Humidity: ≤ 95% RH
                        Environmental oxygen content: 21%
Storage conditions Temperature: -20～+70℃

                          Humidity: ≤ 70% RH
