Product Specification

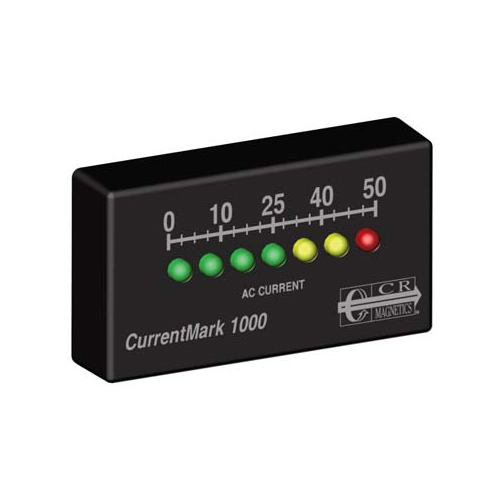

The Current Mark Displays are designed as a low cost method for providing a visual indication and measurement of electrical current flow. The current-carrying wire is routed through the window opening in the current sensing transformer, providing sensing and power for the instrument. CRM1000 Series high efficiency, 7 LED indicator that illuminates as the current approachs the full scale range.

CRM1000 series Current Mark Display high efficiency, 7 LED light bar illuminates as the current approaches full scale range of 25 AAC or 50 AAC.

CRM1000 Series Current Mark Display Features
? Self Powered
? Quick Visual Marking of AC Current
? Compact
? Low Cost for high Volume OEM Applications

CRM1000 Series Current Mark Display Specifications
? 50 AAC Max, 600 VAC Max rating
? Thermoplastic Case Material
? 50 - 2000 Hz Bandwidth
? -300C to +600C Operating Temperature
? -550C to +850C Storage Temperature
? Display is supplied in mounting case with LED attached to current sensing transformer.
? Regulatory Agencies

CRM1000 Series Current Mark Display Applications
? Monitor Status of Heater Elements
? Observe Remote Loads
? Indicate Phase Loss
? Monitor Motor Operation

CRM1000 Series Current Mark Display PART NUMBERS
