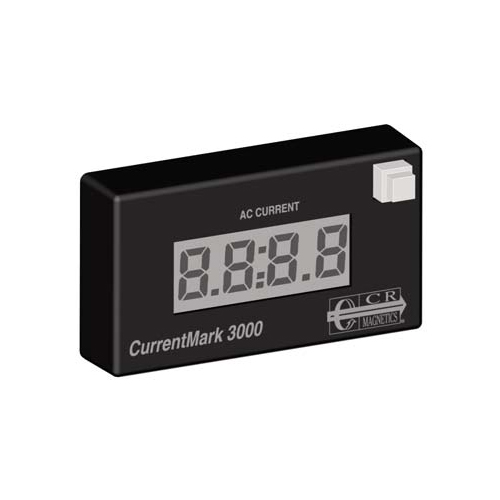

Current Mark Display - Auto-ranging 4 Digit LCD Display with Alarm - CRM3000-50-I/R

? 50 AAC Max, 600 VAC Max rating
? Thermoplastic Case Material
? 50 - 2000 Hz Bandwidth
? -30°C to +60°C Operating Temperature
? -55°C to +85°C Storage Temperature
? Display is supplied in mounting case.
? Regulatory Agencies: UL Listed

Model Number: CRM3000-50-I/R
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

The Current Mark Displays are designed as a low cost method for providing a visual indication and measurement of electrical current flow. The current-carrying wire is routed through the window opening in the current sensing transformer, providing sensing and power for the instrument.

CRM3000 Series Current Mark Display is Self Powered Auto-ranging LCD display with an input range of up to and including 50 AAC. Available with an Internal Current Transformer or Remote Split Core Current Transformer.?

CRM3000 Series Current Mark Display?Features
? Self Powered
? Quick Visual Marking of AC Current
? Compact
? Low Cost for high Volume OEM Applications

CRM3000 Series Current Mark Display?Specifications
? 50 AAC Max, 600 VAC Max rating
? Thermoplastic Case Material
? 50 - 2000 Hz Bandwidth
? -30°C to +60°C Operating Temperature
? -55°C to +85°C Storage Temperature
? Display is supplied in mounting case.
? Regulatory Agencies: UL Listed

CRM3000 Series Current Mark Display?Applications
? Monitor Status of Heater Elements
? Observe Remote Loads
? Indicate Phase Loss
? Monitor Motor Operation
