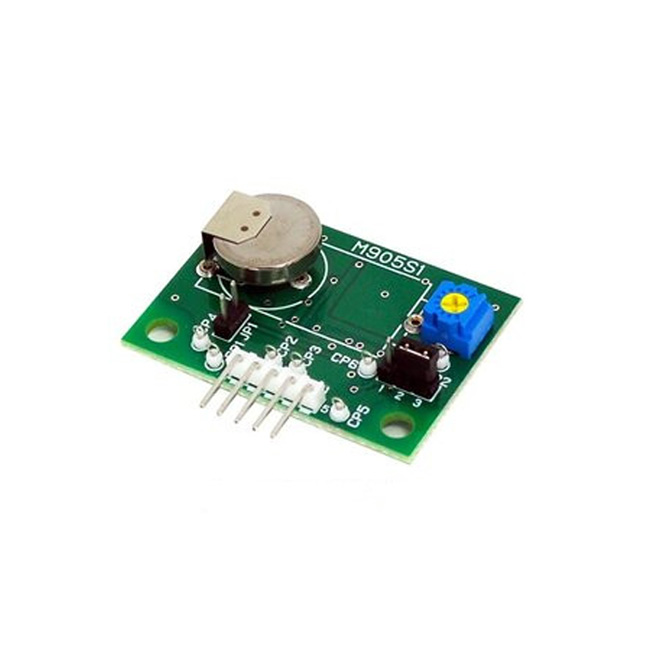

Electrochemical Carbon Monoxide Sensor Evaluation Module For TGS5141 - EM5141A

Converts sensor output current to voltage output
Module designed with electrical noise reduction for stable operation
Anti-polarization circuit during power OFF period

Model Number: EM5141A

Quantity:: - +

Inquire Now Add to cart

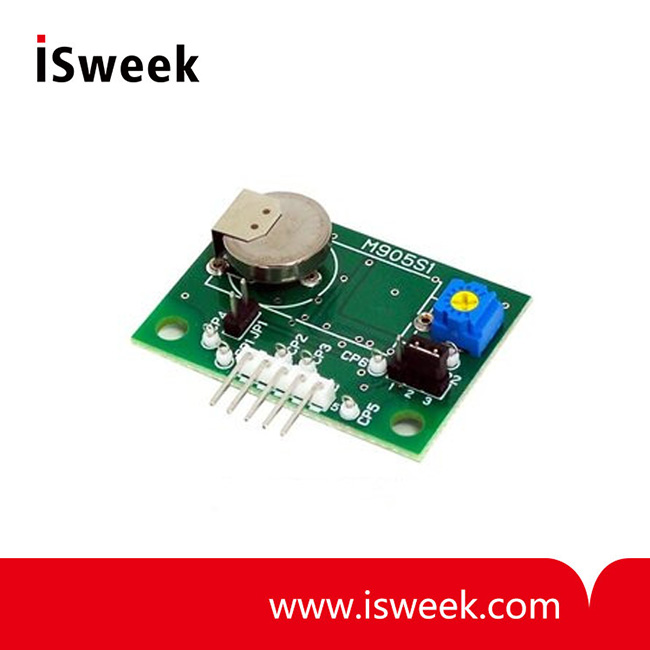

Mouse over image to zoom

Product Specification

Electrochemical Carbon Monoxide Sensor Evaluation Module For TGS5141 EM5141A Description:

The EM5141A evaluation module is designed to perform the testing and evaluation of the electrochemical carbon monoxide sensor TGS5141, which features high selectivity to CO, high repeatability and a long life. This module is useful for evaluating basic performances of TGS5141 gas sensor, and as a reference of application circuit.

Electrochemical Carbon Monoxide Sensor Evaluation Module For TGS5141 EM5141A Features:

Converts sensor output current to voltage output

Module designed with electrical noise reduction for stable operation

Anti-polarization circuit during power OFF period

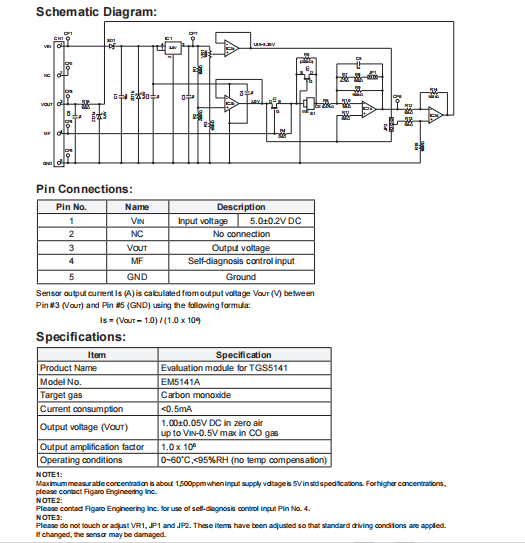

Electrochemical Carbon Monoxide Sensor Evaluation Module For TGS5141 EM5141A Operation:

The TGS5141 CO sensor is placed into the sensor socket. EM5141A goes into normal operation within one minute after first being powered on. If CO gas is not present in ambient conditions, output voltage is 1.0V. If CO gas is present, the output current generated from the TGS5141 sensor(*1)is converted into output voltage. A linear relationship exists between output voltage and CO gas concentration. By measuring in advance the output voltage in a known CO gas concentrations, CO gas concentration can be calculated from the measured output voltage values(*2)(*3).

*1 For more details of characteristics and performance of TGS5141 sensor, refer to Technical Information for TGS5141.

*2 The main function of this module is to simply convert sensor output current into voltage output without temperature compensation. For more information on a temperature compensation circuit, refer to Application Notes for TGS5xxx or contact Figaro.

*3 A calibration curve is available upon request if this module is ordered together with the sensor.

The calibration curve represents the relationship between CO gas concentration and output voltage of the module with a particular sensor. The calibration curve is provided for reference purposes only.
