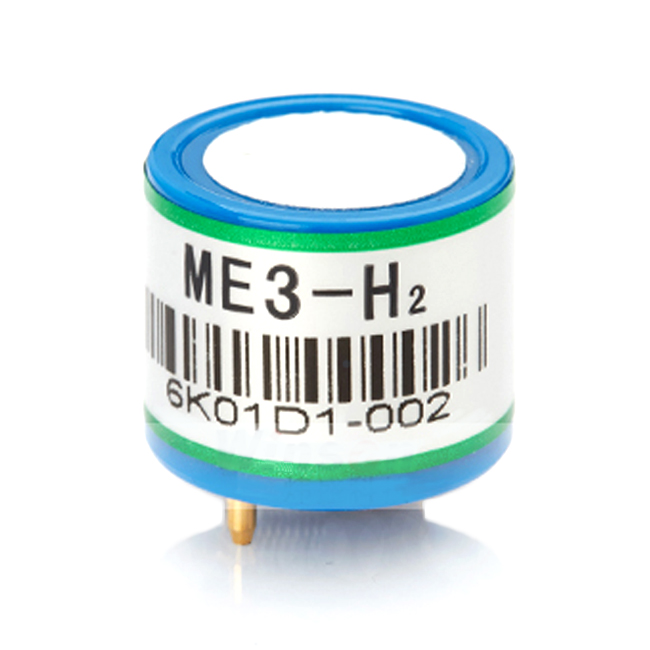

Electrochemical Hydrogen Sensor (H2 Sensor) 0~1000ppm - ME3-H2

? Detection gas: H2
? Measurement Range: 0~1000ppm
? Max detecting concentration: 2000ppm
? Sensitivity: (0.010±0.005) μA/ppm
? Resolution ratio: 2ppm
? Response time (T90): ≤90s
? Repeatability: <2% output value
? Stability (/month): <2%

Model Number: ME3-H2
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

ME3-H2 Hydrogen Sensor (H2 Sensor) Principle Introduction
ME3-H2 electrochemical sensor detect gas concentration by measuring current based on the electrochemical principle, which utilizes the electrochemical oxidation process of target gas on the working electrode inside the electrolytic cell, the current produced in electrochemical reaction of the target gas are in direct proportion with its concentration while following Faraday law, then concentration of the gas could be get by measuring value of current.

ME3-H2 Hydrogen Sensor (H2 Sensor) Features
? Low consumption
? High precision
? High sensitivity
? Wide linear range
? Good anti-interference ability
? Excellent repeatability and stability

ME3-H2 Hydrogen Sensor (H2 Sensor) Applications
Widely used in industrial and environmental protectionl fields

ME3-H2 Hydrogen Sensor (H2 Sensor) Technical parameters

Item	Parameter
Detection gas	H2
Measurement Range	0~1000ppm
Max detecting concentration	2000ppm
Sensitivity	(0.010±0.005) μA/ppm
Resolution ratio	2ppm
Response time (T90)	≤90s
Bias voltage	0mV
Load resistance (recommend)	10Ω
Repeatability	<2% output value
Stability (/month)	<2%
Output Linearity	linear
Zero drift (-20°C~40°C)	≤20ppm
Storage temperature	-20°C~50°C
Storage Humidity	15%~90%RH
Pressure range (kPa)	90-110
Anticipated using life	2 years
