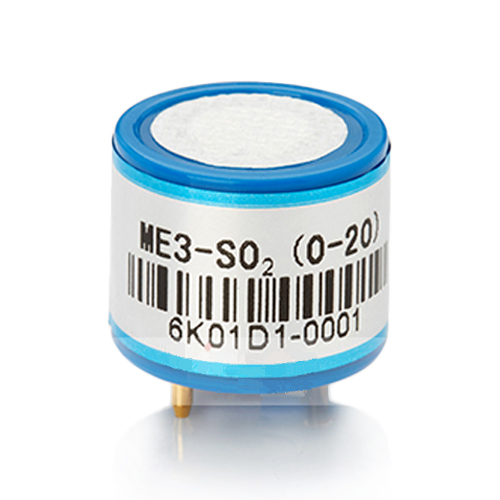

Electrochemical Sulfur Dioxide (SO2) Gas Sensor 0-20ppm - ME3-SO2
? Detected Range: 0 - 20ppm
? Max detecting concentration: 150ppm
? Life: 2 years
? Sensitivity (μA/ppm): 0.50±0.10uA/ppm
? Resolution: 0.1ppm
? Temperature Range: -20°C ~ +50°C
? Repeatability: <2%
? Response Time(T90): ≤30S
- Model Number: ME3-SO2
- Quantity:
- - +
Product Specification
ME3-SO2 SO2 Gas sensor for SO2 detector
ME series SO2 sensors have low consumption, high precision and sensitivity, wide range of linearity, and better anti-jamming capacity, good reproducibility, stability etc advantages.
ME3-SO2 Sulfur Dioxide Sensor SO2 Sensor Application:
Detecting SO2 in industry and environmental protection field
ME3-SO2 Sulfur Dioxide Sensor SO2 Sensor Specifications
|
Sensor |
ME3-SO2 |
|
Type |
Electrochemical |
|
Stand Cover |
Plastic (ME3) |
|
Detected Range |
0 - 20ppm |
|
Filter |
H2S filter out |
|
Max detecting concentration |
150ppm |
|
Life |
2 years |
|
Sensitivity (μA/ppm) |
0.50±0.10uA/ppm |
|
Resolution |
0.1ppm |
|
Temperature Range |
-20°C ~ +50°C |
|
Pressure Range |
Standard atmosphere ±10% |
|
Response Time(T90) |
≤30S |
|
Humidity range |
15% -90%RH non-condensing |
|
Zero Drift (-20℃ ~ +40℃) |
≤0.2ppm |
|
Signal attenuation (/month) |
<2% |
|
RL (recommend) |
10Ω |
|
Repeatability |
<2% |
|
Output Linearity |
Linearity |
