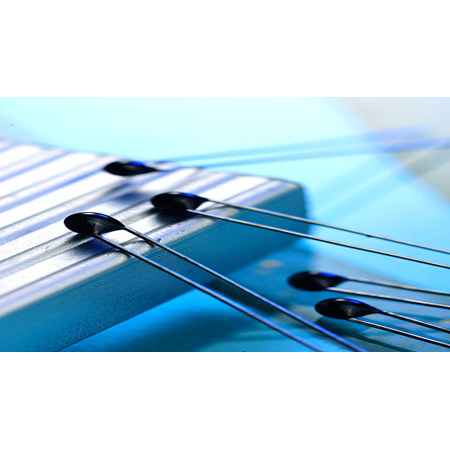

Epoxy-Sealed NTC Thermistor Series Temperature Sensors - MF5A

? Epoxy enclosed, small in volume, with quick response time and high sensitivity.
? Stable in working, high in reliability and precision.
? Consistent and easy to interchange.
? Precision temperature measurement
? Temperature compensation for electric wire
? Circuit of temperature measurement and control

Model Number: MF5A
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

MF5A Epoxy-Sealed NTC Thermistor Series Temperature Sensors Features

? Epoxy enclosed, small in volume, with quick response time and high sensitivity.
? Stable in working, high in reliability and precision.
? Consistent and easy to interchange.

MF5A Epoxy-Sealed NTC Thermistor Series Temperature Sensors Purpose
? Precision temperature measurement
? Temperature compensation for electric wire
? Circuit of temperature measurement and control

MF5A Epoxy-Sealed NTC Thermistor Series Temperature Sensors Application
? Electronic thermometer, electronic calendar, electronic clock temperature display, electronicpresent
? Cooling and heating equipment, heating of constant-temperature electrical appliances.
? Electronic temperature measurement and control circuit of automobile.
? Temperature sensor, temperature meter.
? Medical electronic equipment, electronic washing equipment.
? Molile phone battery and charging electri appliance
? Bread furnace and other small appliances

MF5A Epoxy-Sealed NTC Thermistor Series Description of Product Types and Specifications

(1) KPD — Abbreviations for KePengDa.
(2) MF — Indicates negative temperature (NTC) coefficient thermistor.
(3) 5A — Temperature measurement type epoxy enclosed thermistor.
(4) 103 — Nominal resistance of thermistor, e.g. 103 indicates that the nominal resistance of the thermistor is 10*10³ (Ω).
(5) G — Resistance error (precision), e.g. G indicates the error (precision) of the thermistors is ± 2%.
(6) 360 — Material factor B_25/50 value of thermistor, e.g.395 indicates the material factor B_25/50 value of the thermistor is 395*10K.
(7) F — B_25/50 error (precision), e.g. F indicates the B_25/50 error (precision) of the thermistor is ±1% .
Note : R₂₅ precision:F (±1%), G (±2%), H (±3%), J (±5%), K (±10%).
B_25/50 precision :F (±1%), G (±2%), H (±3%).

MF5A Epoxy-Sealed NTC Thermistor Series Temperature Sensors Main Technical Parameters

Parameters	Parameter range	Test conditions
R₂₅(nominal resistance value)	500 Ω ~ 1 MΩ	Constant temperature 25 ℃± 0.05 ℃
R₂₅ Premissible variance (%)	± 1, ± 2, ± 3, ±5	Constant temperature 25 ℃± 0.05 ℃
B_25/50(material coefficient) (thermal-sensitivity index)	3000 ~ 5000K	Constant temperature 25 ℃± 0.05 ℃ Constant temperature 50 ℃± 0.05 ℃
B_25/50 value premissible variance(%)	± 1, ± 2	Constant temperature 25 ℃± 0.05 ℃ Constant temperature 50 ℃± 0.05 ℃
δ(dissipation coefficient)	≥ 1.5mw/ ℃	Static in still air
T(thermal time constant)	≤ 5S	Static in still air
T_A(working temperature)	-40 ℃ ~ +125 ℃
P_N(rated power)	50 mw	Within working temperature
