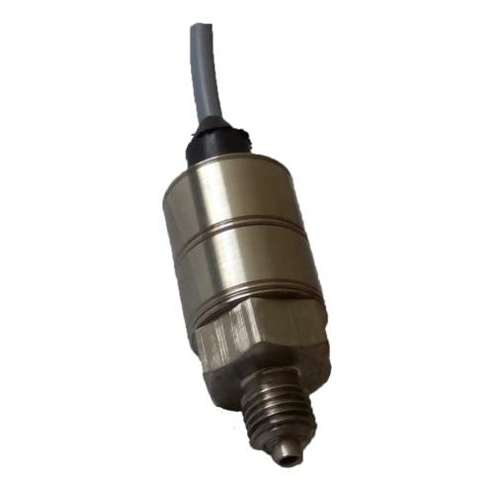

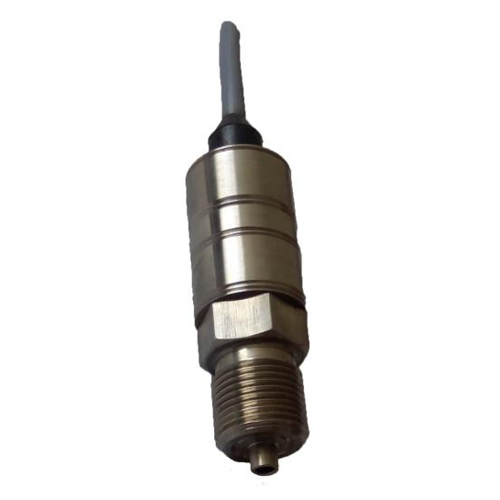

Gage Pressure Microelectronic Transducers 0~160MPa, -40℃~+80℃ - MIDA-TG-51

Wide pressure range 0~160MPa
Operating temperature range -40℃~+80℃
high accuracy, high stability
cost-effective
Accuracy: ≤ ±0,1%; ≤ ±0,2%
Supply voltage: 5 - 15 V

Model Number: MIDA-TG-51

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Gage Pressure Microelectronic Transducers 0~160MPa, -40~+80℃

MIDA-TG-51

Features:

Wide pressure range 0~160MPa
Operating temperature range -40℃~+80℃
high accuracy, high stability
cost-effective

Specification

Applicationsy	Industrial instrumentation & process control systems
Measured medium	Fluids and gases compatible with titanium alloys and stainless steels
Standard ranges, MPa	0-0,01 … - 0-160
Accuracy (comb. L.H.R),no more than, ±%	0,1; 0,2
Zero output, ±mV/1 V of supply voltage	0,1 (for 0,1%); 0,2 (for 0,2%)
Output range, mV / V	5,0+0,2 (3,0+0,2 for 0,01 MPa; 10+0,2 by special request)
Operating temperature range, ℃	-40 ... +80
Additional temperature error in operating temperature range (-40…+80℃), no more than, %	2,0 (for 0,1%); 3,0 (for 0,2%)
Compensated temperature range, ℃	---
Additional error within compensated temperature range, no more than, %: of zero output of output range	---
Supply voltage, V	5 - 15
Input and output resistance, kOhm	R_вх ≥4; R_вых ≤7
Overload, no more than	1,5Рnom (<40 MPa), и 1,25Pnom(>40 MPa)
Insulation resistance(at temperature of 25 ℃), not less than	100 MOhm at 100 V
