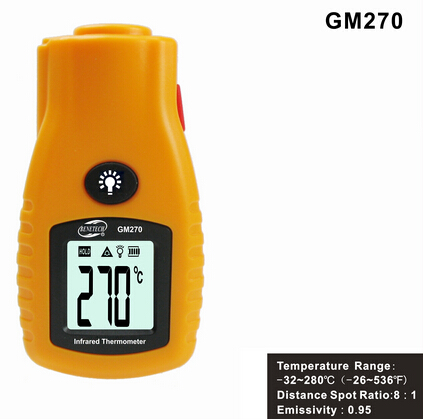

Infrared Thermometer - GM270
* Temperature range: -32 ~ 280°C (-26 ~ 536°F)
* Accuracy: ±1.5% or ±1.5°C
* Resolution: 0.1°C or 0.1°F
* Repeatability: ±1% or ±1°C
* Distance Spot Ratio: 8:1
* Emissivity: 0.95 preset
* Resolution: 0.1°C/°F
* Response Time: 500ms
- Model Number: GM270
- Data Sheet:
- Quantity:
- - +
Product Specification
GM270 Infrared Thermometer Introduction
This infrared thermometer is used for measuring the temperature of the object's surface, which is applicable for various hot, hazardous or hard-to-reach objects without contact safely and quickly.
This unit consist of Optics, Temperature Sensor Signal amplifier, Processing circuit and LCD Display. The Optics collected the infrared energy emitted by object and focus onto the Sensor. Then the sensor translates the energy into an electricity signal. This signal will be turned out to be digital shown on the LCD after the signal amplifier and processing circuit.
GM270 Infrared Thermometer Specification
Temperature range
-32 ~ 280°C (-26 ~ 536°F)
Accuracy
0°C~280°C (32℉~536℉): ±1.5°C (±2.7°F) or ±1.5%
-32°C~0°C (-26℉~32℉): ±3°C (±5°F)
Whichever is greater
Resolution
0.1°C or 0.1°F
Repeatability
1% of reading or 1°C
Response time
500 mSec, 95% response
Spectral response
8-14 um
Emissivity
0.95 Preset
Distance to Spot size
8:1
Operating Temperature
0 ~ 40°C (32 ~ 104°F)
Operating Humidity
10~90%RH non-condensing, up to 30°C(86°F)
Storage Temperature
-20 ~ 60°C (-4 ~ 140°F)
Power
1.5V AAA*2 battery
Typical battery life
Laser off: 12 hrs
