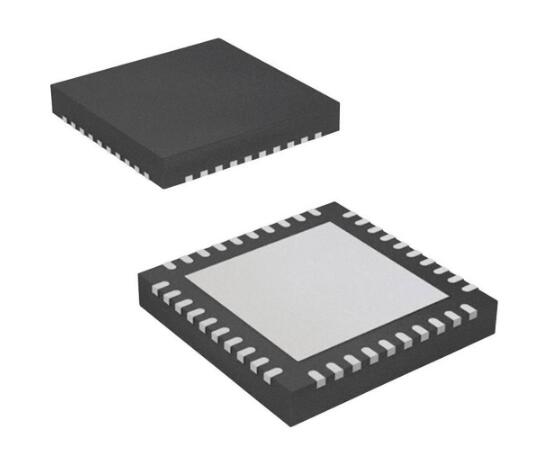

Korea Neofidelity Digital power amplifier - NTP8918

2 CH Stereo (15W x 2 BTL)
Wide Operating Supply Voltage Range(5V to 28V)
SDATA Generator (I2 S Output)
Floating Point Operation

Model Number: NTP8918
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

General Description：

The NTP8918 is a single chip full digital audio amplifier including power stage for stereo amplifier system. The NTP8918 is integrated with versatile digital audio signal processing functions, high-performance, high-fidelity fully digital PWM modulator and two high-power full-bridge MOSFET power stages.

The NTP8918 receives digital serial audio data with sampling frequencies of 32kHz, 44.1kHz, 48kHz, and 96kHz. It delivers 2 x 15 watts in stereo mode without heat sink.
The NTP8918 has a mixer and Bi-Quad filters which can be used to implement the essential audio signal processing functions such asloudness control, compensation of a loud speaker response and parametric equalization.
All the functions of the NTP8918 can be controlled by internal register values via I2C host interface bus.

Features：

2 CH Stereo (15W x 2 BTL)

Wide Operating Supply Voltage Range(5V to 28V)

SDATA Generator (I2 S Output)

Floating Point Operation

32 Programmable Bi-Quad Filters

-Speaker Compensation

-LPF, HPF, DC Cut

-Advanced Parametric Equalizer

IBB(Intelligent BASS Boost)

3Band Dynamic Range Control

-RS(Reinforced Sound) DRC
