Product Specification

1. General description：

    The integrated circuit PCF8883 is a capacitive touch and proximity switch that uses a patented (EDISEN) digital method to detect a change in capacitance on a remote sensing plate. Changes in the static capacitance (as opposed to dynamic capacitance changes) are automatically compensated using continuous auto-calibration. Remote sensing plates (e.g. conductive foil) can be connected directly to the IC1 or remotely using a coaxial cable.

2. Features and benefits：

? Dynamic proximity switch

? Digital processing method

? Adjustable sensitivity, can be made very high

? Adjustable response time

? Wide input capacitance range (10 pF to 60 pF)

? Automatic calibration

? A large distance (several meters) between the sensing plate and the IC is possible

? Open-drain output (P-type MOSFET, external load between pin and ground)

? Designed for battery powered applications (I_DD = 3μA, typical)

? Output configurable as push-button, toggle, or pulse

? Wide voltage operating range (V_DD = 3 V to 9 V)

? Large temperature operating range (T_amb =-40℃ to +85℃)

? Internal voltage regulator

? Available in SOIC8 and wafer level chip-size package (CSP)

3. Applications：

? Proximity detection

? Proximity sensing in

    *Mobile phones

    *Portable entertainment units

? Switch for medical applications

? Switch for use in explosive environments

? Vandal proof switches

? Transportation: Switches in or underupholstery, leather, handles, mats, and glass

? Buildings: switch in or under carpets, glass, or tiles

? Sanitary applications: use of standard metal sanitary parts (e.g. tap) as switch

? Hermetically sealed keys on a keyboard

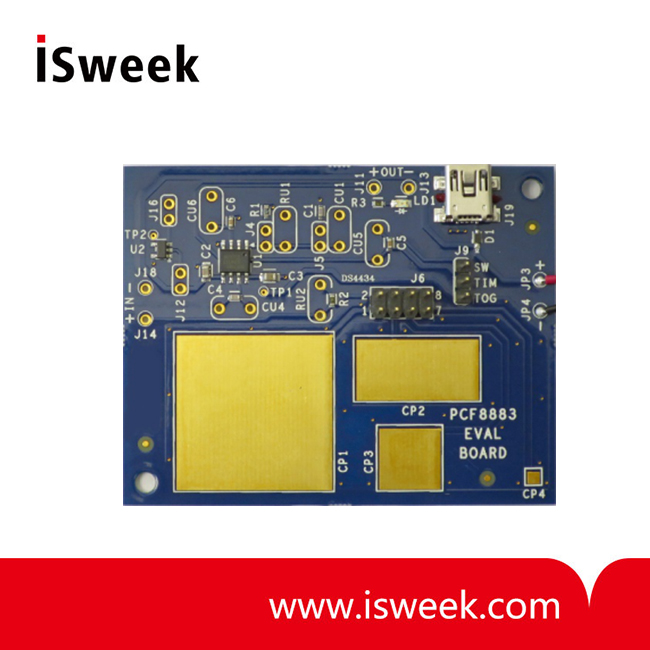

PCF8883T/1 Evaluation Board
