Level shift - iML7278
2.6V to 5.5V Input Logic Level Range
-15V to 40V Output Voltage Range
13 Ch Level Shifter Support 8-CH CLK,2-CH ST, 2-CH LC, VSSG
Protection Functions: UVLO, OTP, OCP
Support 1 CLK IN, 4/6/8 CLK OUT
- Model Number: iML7278
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
The iML7278 is a 13 channel high-voltage level-shifter application. The device provides a condense logic that generates 13 outputs signals from the several input signals provided by the Timing Controller (TCON) to high level signals used by the display panel. This outputs are swings from 45V to -20V, high slew rate, and high current driving ability which is fitted for any kind of GOP/GIP/GOA panel. Thermal protection is also designed in this device.

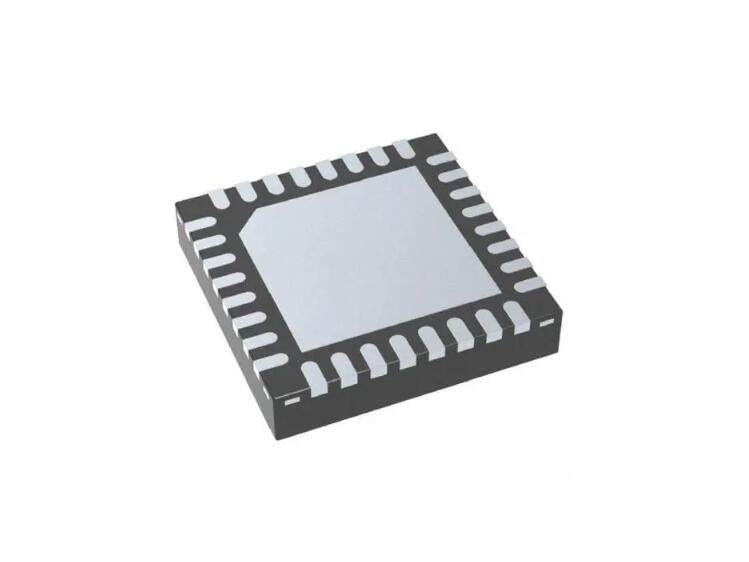

The iML7278 is available in a 32-pin thin QFN package with a maximum thickness of 0.8mm for ultra-thin LCD panels.
FEATURES：
2.6V to 5.5V Input Logic Level Range
-15V to 40V Output Voltage Range
13 Ch Level Shifter Support 8-CH CLK,2-CH ST, 2-CH LC, VSSG
Protection Functions: UVLO, OTP, OCP
Support 1 CLK IN, 4/6/8 CLK OUT
CLK N/1/2/3 Line Pre-Charge, 1/2/4 Line on
RoHS Compliant and Halogen Free
APPLICATIONS：
GOA TFT-LCD Panel
