Low Cost Polycarbonate Body pH and ORP Electrodes - S150C/S150CD Series

? ?pH Measuring Range: 0-14 pH Na+ error >12.3 pH)
? ?Max Temperature: 60 degrees C
? ?Max Pressure: 50 psig
? ?Use with any pH meter
? ?Durable polycarbonate body construction
? ?Shipped in soaking solution ready for immediate use
? ?RoHS Compliant

Model Number: S150C/S150CD Series
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

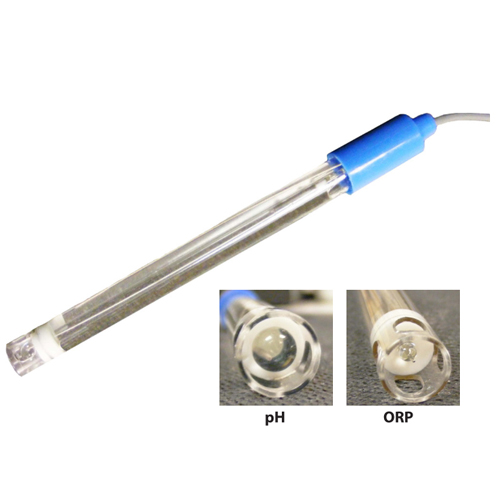

S150C(pH) and S150C-ORP Low Cost Polycarbonate Body Electrodes

Item No.: S150C, S150CD, S150C-ORP, S150CD-ORP

S150C/S150CD Series pH and ORP Electrodes Features
? Use with any pH meter
? Durable polycarbonate body construction
? Shipped in soaking solution ready for immediate use
? Available In clear or black bodies(upon request)
? No-Maintenance Gel filled reference
? RoHS Compliant

S150C/S150CD Series pH and ORP Electrodes Description
The new S150C and S150C-ORP in polycarbonate body, offer a lower cost alternative to epoxy body pH and ORP electrodes. Choose them for general purpose lab applications, pool and spa pH and chlorine control and more.

A newly designed tip offers pH bulb and ORP platinum or gold protection while maintaining optimum flow through the slots in the body.

Both pH and ORP models are shipped in a soaker bottle and are ready for immediate use.

The gell-filled sealed reference provides maintenance-free operation.

RoHS compliant, both pH and ORP models are built using lead-free glass and lead-free solder.

Standard versions are supplied in a clear Polycarbonate body. Black body versions are available upon request in OEM quantities.

S150C/S150CD Series pH and ORP Electrodes Specifications

pH Measuring Range	0-14 pH Na+ error >12.3 pH)
Wetted Materials	Polycarbonate, Silicone, pH Glass or Platinum
Max Temperature	60 degrees C
Max Pressure	50 psig
Cable Length	30 inches
Connectors	choice of BNC, (US Std, DIN at additional cost)
Response Speed pH	>90% in 1 second

S150C/S150CD Series pH and ORP Electrodes ORDERING INFORMATION

Part no.	Description
S150C	Combination pH electrode, Clear Body, 1 meter cable, BNC connector or other at additional cost
S150CD	Combination pH electrode, Clear Body, Double junction, 1 meter cable, BNC connector or other at additional cost
S150C-ORP	Combination ORP electrode, Platinum, Clear Body, 1 meter cable, BNC connector or other at additional cost
S150CD-ORP	Combination ORP electrode, Platinum, Clear Body, Double junction, 1 meter cable, BNC connector or other at additional cost
S150C-ORP-AU	Combination ORP electrode, Gold, Clear Body, 1 meter cable, BNC connector or other at additional cost
