Product Specification

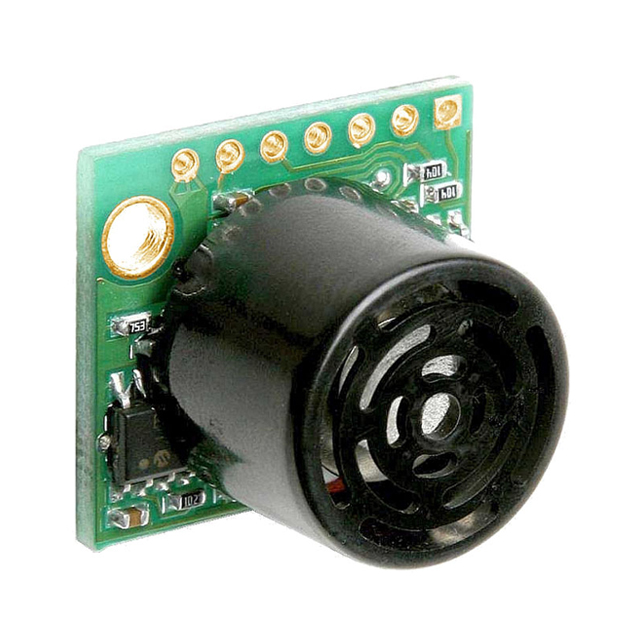

MB1040 LV-MaxSonar-EZ4
High Performance Ultrasonic Rangefinder

MB1040 LV-MaxSonar-EZ4 Ultrasonic Rangefinder Product Description
The LV-MaxSonar-EZ4 is the narrowest beam width sensor that is also the least sensitive to side objects offered in the LV-MaxSonar-EZ sensor line. The LV-MaxSonar-EZ4 is an excellent choice when only larger objects need to be detected.

MB1040 LV-MaxSonar-EZ4 Ultrasonic Rangefinder Product Specifications
? Resolution of 1 inch
? 20Hz reading rate
? 42kHz Ultrasonic sensor measures distance to objects
? RoHS Compliant
? Read from all 3 sensor outputs: Analog Voltage, RS232 Serial, Pulse Width
? Virtually no sensor dead zone, objects closer than 6 inches range as 6 inches
? Maximum Range of 254 inches (645 cm)
? Operates from 2.5-5.5V
? Low 2.0mA average current requirement
? Small, light weight module
? Designed for easy integration into your project or product
? Narrowest beam of the LV-MaxSonar-EZ sensors
? Best for large object detection applications

MB1040 LV-MaxSonar-EZ4 Ultrasonic Rangefinder Features and Benefits
? Best side object rejection in the LV-MaxSonar-EZ sensor line
? Low power consumption
? Easy to use interface
? Best for large object detection
? Can be powered by many different types of power sources
? Can detect people up to approximately 4 feet

MB1040 LV-MaxSonar-EZ4 Ultrasonic Rangefinder Applications and Uses
? Landing flying objects
? Used with battery power
? Autonomous navigation
? Educational and hobby robotics
? Collision avoidance

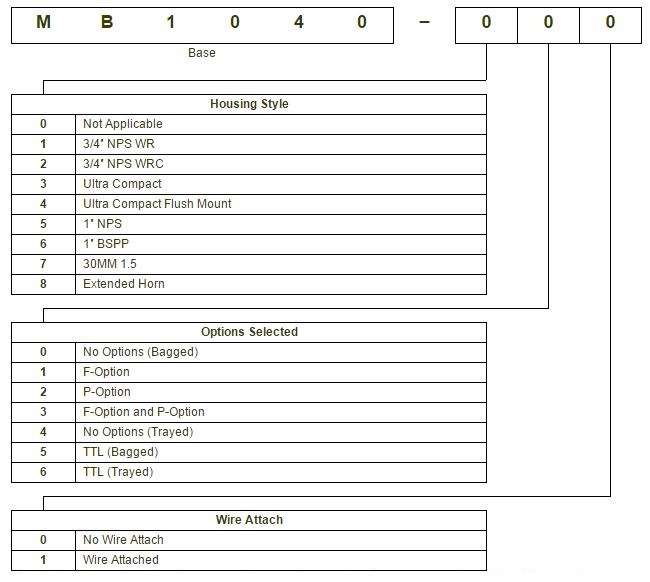

MB1040 LV-MaxSonar-EZ4 Ultrasonic Rangefinder Part Numbers
All part numbers are a combination of a six-character base followed by a dash and a three-digit product code. Please review the following table for more information on the three-digit product code.

The following table displays all of the active and valid part numbers for this product.
