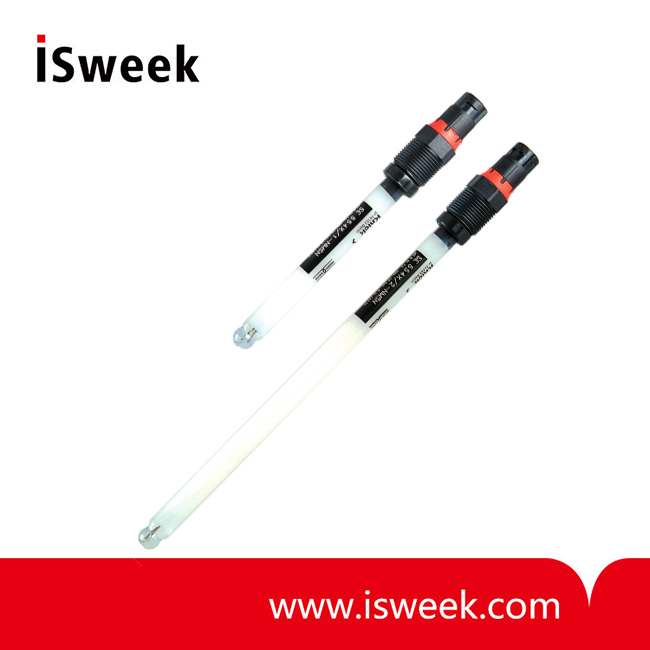

Memosens pH Sensor - SE 554
- pH: 0 - 14
- Temperature: 0 ~ 130 °C
- Pressure: Up to 10 bars
- Temperature detector: NTC 30 kohms
- Length: 120 mm / 225 mm
- Sensor cap: Memosens
- ATEX Certificate: II 1 G Ex ia IIC T3 / T4 / T6
- Precalibration in the lab
- Digital data transfer
- Model Number: SE 554
- Data Sheet:
- Quantity:
- - +
Product Specification
SE 554 Memosens pH Sensor
Low-maintenance sensor for demanding process application in the chemical industry, digital, with Memosens technology
High accuracy, stability, rapidness, and a long life cycle are achieved by the special design. Through 2 open junctions, the refer-ence system is in direct contact with the measured medium. There is hardly any risk of contamination or blocking of the junc-tion. The high content and special distribu-tion of potassium chloride in the polymer reduces measurement disturbances which could be caused by liquid junction potentials.
SE 554 Memosens pH Sensor Facts
- Perfect galvanic isolation thanks to Memosens technology
- No influence of humidity in the connector
- Precalibration in the lab
- Digital data transfer
- Integrated sensor diagnostics
- Low maintenance, no refilling of electrolyte
- Integrated temperature detector
- Open junctions, no blocking
SE 554 Memosens pH Sensor Applications
Measurement in media of extremely high ionic strength, salt spring, strongly oxidizing media, acidic and alkaline media
SE 554 Memosens pH Sensor Specifications
| pH | 0 - 14 |
| Temperature | 0 ~ 130 °C |
| Pressure | Up to 10 bars |
| Temperature detector | NTC 30 kohms |
| Sensor material | Low-impedance standard pH glass, fast response |
| Reference system | Ag/AgCl, polymeric electrolyte |
| Junction | Hole (2 x) |
| Length | 120 mm / 225 mm |
| Process adaptation | Pg 13.5 |
| Sensor cap | Memosens |
| ATEX Certificate | II 1 G Ex ia IIC T3 / T4 / T6 |
