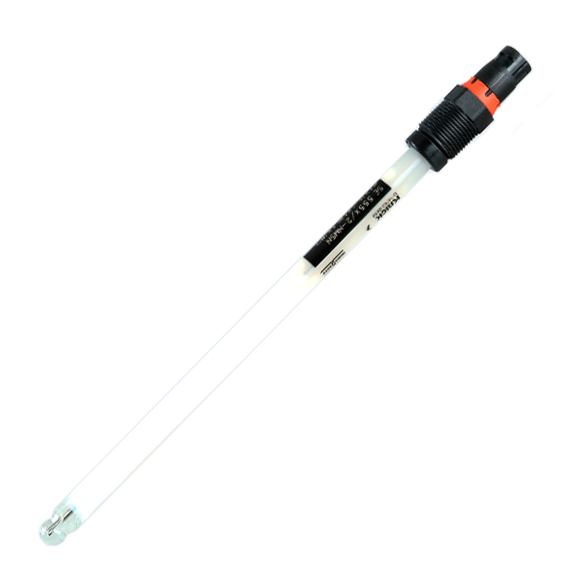

Memosens pH Sensor - SE 555
- pH: 0 - 14
- Temperature: 0 - 135 °C
- Pressure: -1 - 6 bars
- Temperature detector: NTC 30 kohms
- Length: 120 mm / 225 mm
- Sensor cap: Memosens
- Digital data transfer
- Special pH glass,suitable for sterilization
- Model Number: SE 555
- Data Sheet:
- Quantity:
- - +
Product Specification
SE 555 Memosens pH Sensor
Autoclavable sensor providing high reliability and precision, digital, with Memosens technology
The special pH glass enables a very fast and stable response and makes the sensor CIP-and SIP-capable, even in the harshest of environments. The gel electrolyte of the ref-erence electrode is pressurized and long-term stable. This makes the sensor ideal for routine applications in food processing and biotechnology. It is equally suited for continuous- measurements in analytical chemistry.
SE 555 Memosens pH Sensor Applications
Chemical, pharmaceutical industry, biotech-nology, food and beverage industry
SE 555 Memosens pH Sensor Facts
- Perfect galvanic isolation thanks to Memosens technology
- No influence of humidity in the connector
- Precalibration in the lab
- Digital data transfer
- Integrated sensor diagnostics
- Gel electrolyte, pressurizedand long-term stable
- Special pH glass,suitable for sterilization
- Integrated temperature detector
- Ceramic junction
- Safe sterilization with temperature monitoring
- CIP- and SIP-capable
SE 555 Memosens pH Sensor Specifications
| pH | 0 - 14 |
| Temperature | 0 - 135 °C |
| Pressure | -1 - 6 bars |
| Temperature detector | NTC 30 kohms |
| Sensor material | Special pH glass for high temperatures (SIP) and high pH values |
| Reference system | Ag/AgCl, prepressurized liquid electrolyte with silver ion trap |
| Junction | Ceramic (1 x) |
| Length | 120 mm / 225 mm |
| Process adaptation | Pg 13.5 |
| Sensor cap | Memosens |
| ATEX Certificate | II 1 G Ex ia IIC T3 / T4 / T6 |
