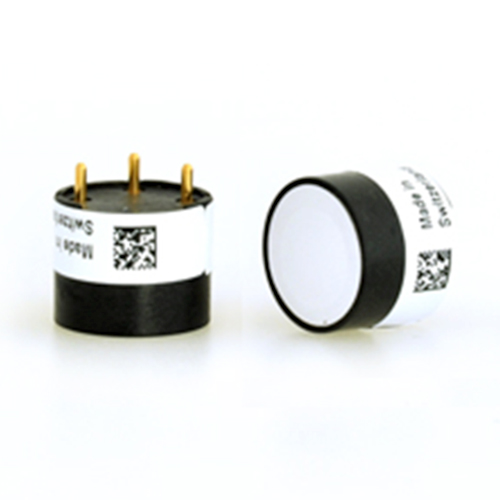

Miniature Sulfur Dioxide Gas Sensor (SO2 Sensor) with Filter - SO2/MF-100

? Nominal Range: 0 - 100 ppm
? Maximum Overload: 500 ppm
? Inboard Filter: To remove H2S and HCl
? Expected Operation Life: 2 years in air
? Output Signal: 370 ± 70 nA/ppm
? Resolution: 0.2 ppm
? Temperature Range: -20°C to 50°C
? T90 Response Time: < 20 sec
? Relative Humidity Range: 15 % to 90 % R.H. non-condensing

Model Number: SO2/MF-100
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Miniature Gas Sensors
Industry standard for portable gas detectors. Widely-used format for personal safety.

Features
Smallest size

Dimensions
Conforms to 4-Series
Diameter: 20 mm
Height: 16.6 mm
Pin diameter: 1.5 mm

SO2/MF-100 Sulfur Dioxide Sensor (SO2 Sensor) Applications
? Safety and Environmental Control
? For Portable Gas Detectors

SO2/MF-100 Sulfur Dioxide Sensor (SO2 Sensor) Performance Characteristics

Nominal Range	0 - 100 ppm
Maximum Overload	500 ppm
Inboard Filter	To remove H2S and HCl
Expected Operation Life	2 years in air
Output Signal	370 ± 70 nA/ppm
Resolution	0.2 ppm
Temperature Range	-20°C to 50°C
Pressure Range	Atmospheric ± 10%
Pressure Coefficient	No data
T90 Response Time	< 20 sec
Relative Humidity Range	15 % to 90 % R.H. non-condensing
Typical Baseline Range (pure air, 20°C)	0 ppm ± 0.4 ppm
Maximum Zero Shift	N.D.
Long Term Output Drift	< 2% signal loss/month
Recommended Load Resistor	10 Ohm
Bias Voltage	Not required
Repeatability	< 2 % of signal
Output Linearity	Linear

SO2/MF-100 Sulfur Dioxide Sensor (SO2 Sensor) Physical Characteristics

Weight	~ 5,6 g
Position Sensitivity	None
Storage Life	Six months in container
Recommended Storage Temperature	5°C - 20°C
Warranty Period	12 months from date of dispatch

SO2/MF-100 Sulfur Dioxide Sensor (SO2 Sensor) Cross Sensitivity Data

Interfering Gas	Concentration	Reading
CO	1000 ppm	< 10 ppm
H2S	200 ppm	10 ppm
NO	1000 ppm	0 ppm
NO2	1000 ppm	~ -1250 ppm
H2	10000 ppm	< 10 ppm
Ethylene	1000 ppm	0 ppm
