ORP Sensor for Hygienic Processes and Sterile Applications - SE 565

- ORP: -1500 mV ... +1500 mV
- Temperature: 0 … 130 °C
- Pressure: up to 10 bars
- Temperature detector: NTC 30 kohms
- Sensor material: platinum
- Reference system: Ag/AgCl, polymer electrolyte
- Length: 120 mm / 225 mm
- Sensor cap: Memosens

Model Number: SE 565
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

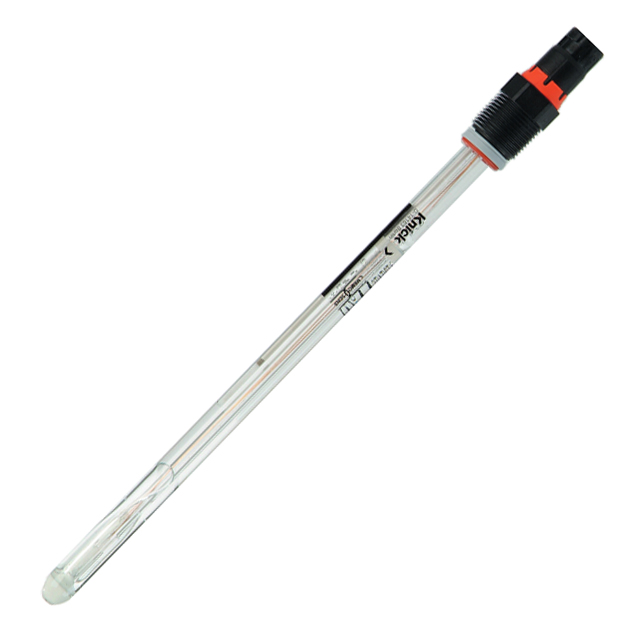

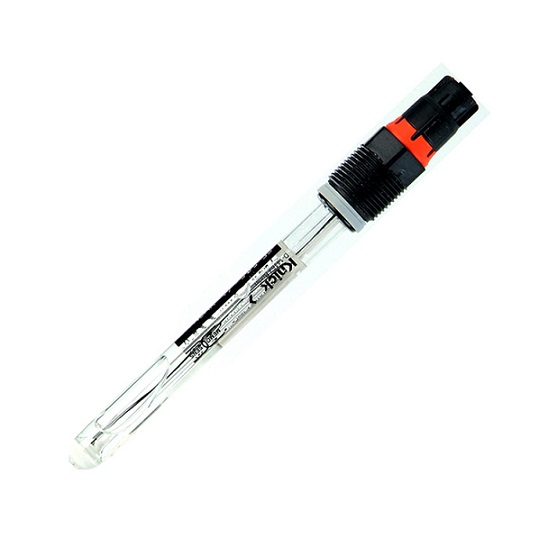

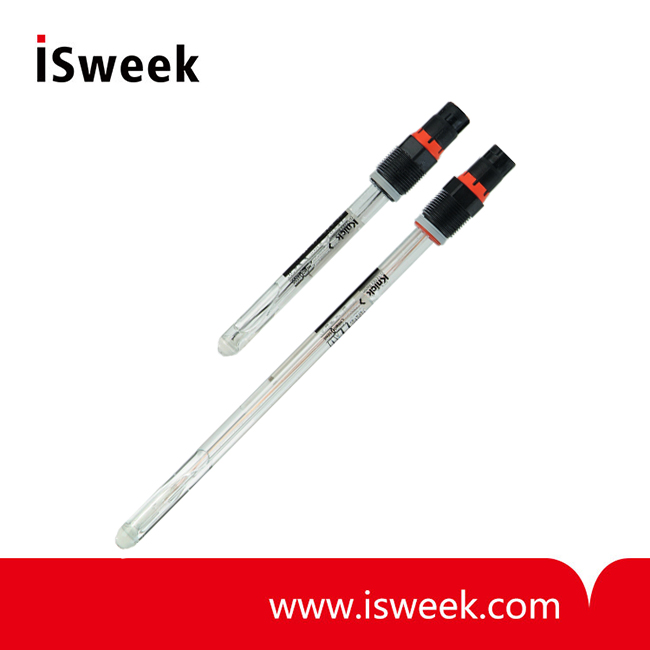

SE 565 ORP Sensor

ORP sensor for hygienic processes and sterile applications.

The SE 565 ORP sensors are low-mainte-ceramic junction, the polymer reference system is in contact with the process medium.
The sensor is made of platinum.

SE 565 sensors are designed for simultane- ous measurement of ORP and temperature in industrial processes.

They are suitable for sterilization with steam and they provide a reference system which has been developed for the use in food and pharmaceutical products.

SE 565 ORP Sensor Facts
- perfect galvanic isolation thanks to Memosens technology
- no influence of humidity in the connector
- digital data transfer
- integrated sensor diagnostics
- state-of-the-art polymer electrolyte
- integrated temperature detector
- ceramic junction
- for hygienic and sterile applications
- for heavily polluted media
- for media containing sulfides
- for media containing proteins
- suitable for solvent-containing processes

SE 565 ORP Sensor Applications
Hygienic and sterile applications, food and pharmaceutical industry, biotechnology

SE 565 ORP Sensor Specifications

ORP	-1500 mV ... +1500 mV
Temperature	0 … 130 °C
Pressure	up to 10 bars
Temperature detector	NTC 30 kohms
Sensor material	platinum
Reference system	Ag/AgCl, polymer electrolyte
Junction	hole (2x)
Length	120 mm / 225 mm
Sensor cap	Memosens
ATEX certificate	II 1 G Ex ia IIC T3 / T4 / T6
