Outdoor UV Index Meter - GUVB-S11GS-AG02.1
- Fixing method : Installation at the Pole
- Power : AC110/240V 50/60 Hz
- Display : 5 Color LED
- Size : 600 mm X 250 mm X 205 mm3
- Weight : 12Kg
- Operating Temperatue : -30 ~ 55 'C
- Detection Range : 280 ~ 400 nm
- Model Number: GUVB-S11GS-AG02.1
- Data Sheet:
- Quantity:
- - +
Product Specification
- Fixing method : Installation at the Pole
- Power : AC110/240V 50/60 Hz
- Display : 5 Color LED
GUVB-S11GS-AG02.1 Outdoor UV Index Meter Specifications
- Size : 600 mm x 250 mm x 205 mm3
- Weight : 12Kg
- Operating Temperatue : -30 ~ 55 C
- Detection Range : 280 ~ 400 nm
- UV sensor head on the top
GUVB-S11GS-AG02.1 Outdoor UV Index Meter Applications
- UV Index indicating in street, beach, swimming pool, park and so on
- UV Index alarm
GUVB-S11GS-AG02.1 Outdoor UV Index Meter General Information
|
Parameter |
Value |
Remark |
|
Operating Temperature |
-30 ~ 55°C |
|
|
Weight |
12 kg |
with braket |
|
Case materail |
Stainless Steel or Carbon Steel |
Electrostatic Painted |
|
Product Mounting |
4" ~ 6" Pole |
|
|
Other Function |
Connection to Ethernet Network |
Software include |
GUVB-S11GS-AG02.1 Outdoor UV Index Meter Electrical Characteristic (at 25 ℃)
|
Parameter |
Value |
Remark |
|
Supply Voltage |
110/220 VAC |
50/60 Hz |
|
UV Index display |
Green/Yellow/Orange/Red/Purple |
|

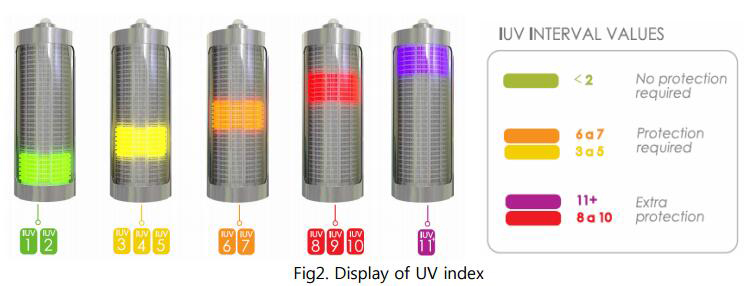

GUVB-S11GS-AG02.1 Outdoor UV Index Meter Display
GUVB-S11GS-AG02.1 Outdoor UV Index Meter Information of Display
GUVB-S11GS-AG02.1 Outdoor UV Index Meter Installation Example
