Outdoor UV Index Meter - GUVB-S11GS-AG03.5
- UVI display with solar cell panel (No need for additional power supply)
- Include indoor UV indicator (Wireless communication)
- Weight (Main body): 12.5 kg
- UV Index Display: 0 UVI to 11 UVI
- Size of lndicator : 460 mm X 460 mm X 150 mm3
- Operating Temperature : -30 ~ 70 ℃
- Delay Time: 10Sec
- Model Number: GUVB-S11GS-AG03.5
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
GUVB-S11GS-AG03.5 Outdoor UV Index Meter Features
UVI display with solar cell panel (No need for additional power supply)Include indoor UV indicator (Wireless communication)
GUVB-S11GS-AG03.5 Outdoor UV Index Meter Material
Case : ABS
Cover : Acrylic
GUVB-S11GS-AG03.5 Outdoor UV Index Meter Applications
UV Index indicating in street, beach, swimming pool, park and so on
UV Index alarm

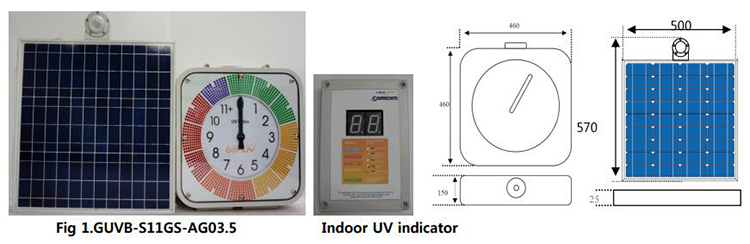

GUVB-S11GS-AG03.5 Outdoor UV Index Meter Physical Dimensions & Connection [unit : mm]
GUVB-S11GS-AG03.5 Outdoor UV Index Meter Absolute Maximum Ratings
|
Parameter |
Symbol |
Value |
Unit |
Remark |
|
Storage Temperature |
Tsp |
-30 ~ 80 |
℃ |
|
|
Operating Temperature |
Top |
-30 ~ 70 |
℃ |
|
GUVB-S11GS-AG03.5 Outdoor UV Index Meter Mechanical Data
|
Parameter |
Value |
Unit |
Remark |
|
|
Weight (Main body) |
12.5 |
kg |
with Solar Pannel |
|
|
Indoor UV indicator |
0.33 |
kg |
|
|
|
Size |
Indicator |
460 × 460 × 150 |
mm3 |
|
|
Solar Panel |
570 × 500 × 25 |
mm3 |
|
|
|
Indoor UV indicator |
130 × 180 × 35 |
mm3 |
|
|
GUVB-S11GS-AG03.5 Outdoor UV Index Meter Electrical Characteristic (at 25 ℃)
|
Parameter |
Symbol |
Value |
Unit |
Remark |
||
|
Min. |
Typ. |
Max. |
||||
|
UV Index Display |
|
0 |
|
11+ |
UVI |
|
|
Delay Time |
Tr |
|
10 |
|
sec |
|
