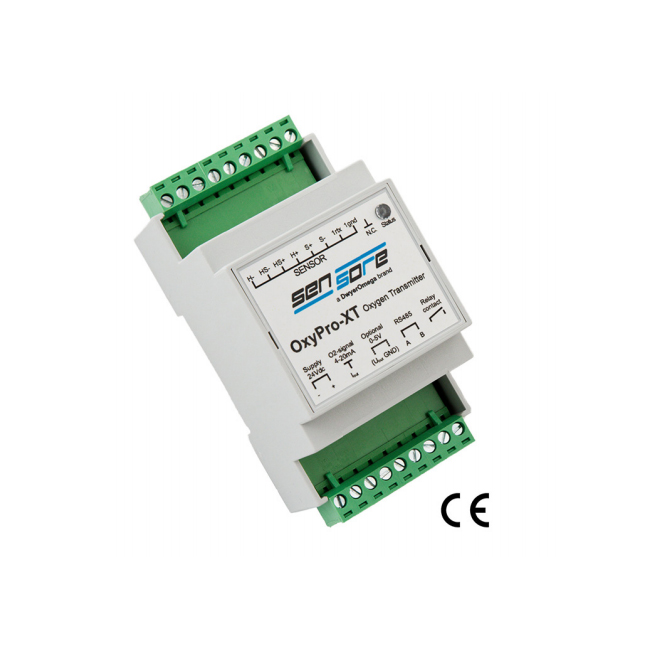

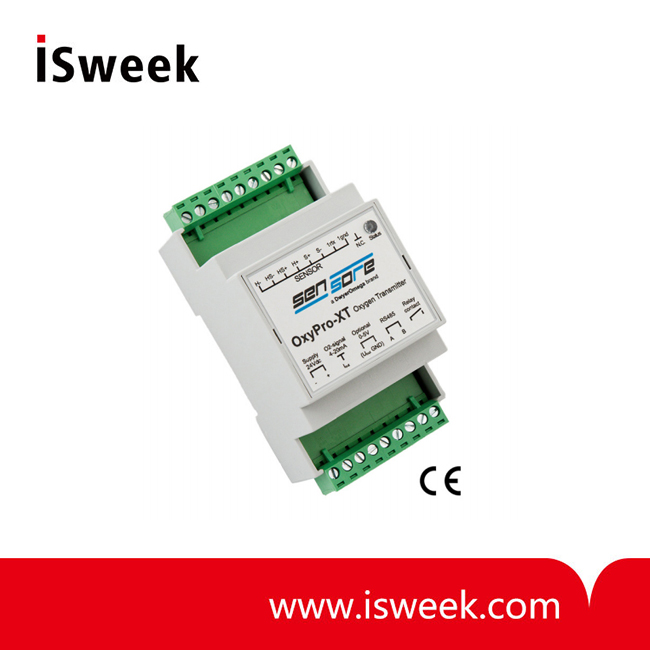

Oxygen Transmitter - OxyPro-XT

No calibration required
Measurement ranges from 10 ppm to 96% defined by selected smart sensor
Pre-calibrated smart sensors
Analog 4…20 mA, 0…5 V (Optional) and RS485 Modbus RTU output
User Programmable O2-alarm / Relay

Model Number: OxyPro-XT
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Oxygen Transmitter OxyPro-XT Description：

The OxyPro-XT uses SMART sensors based on O2 diffusion -limiting zirconia technology, delivering a long-life, reliable solution. Each smart sensor is individually calibrated against an O2-reference. The resulting calibration data is stored within the sensor. Upon connection of the sensor, the calibration and operating parameters are uploaded into the transmitter, allowing a plug and play approach in the application.

The transmitter is compatible with many sensors and thread/flange types from the SENSORE product range.

The OxyPro-XT is a single channel / single range solution. For the combination of two different measurement ranges please refer to the dual channel solution OxyPro-XT2.

Oxygen Transmitter?OxyPro-XT?Details：

No calibration required
Measurement ranges from 10 ppm to 96% defined by selected smart sensor
Pre-calibrated smart sensors
Analog 4…20 mA, 0…5 V (Optional) and RS485 Modbus RTU output
User Programmable O2-alarm / Relay

Oxygen Transmitter?OxyPro-XT?Specifications：

General sensor specification	?
O2 Accuracy	See page 2
Maximum flowvelocity	6 m/s (19.7 ft/s)
Pressure range	700...1300 mbarA (10...19 psia)
Maximum safepressure	1500 mbarg (21 psig)
Response time (T90)	Depends on selected sensor housing (fastest option < 5 seconds)
Operatingtemperature range (sensor head)	Depends on sensor cableconfiguration, in all cases +10...+100 °C (+50...+212 °F)
Operatingtemperature range (sensor plug)	+10...+75 °C (+50...+165 °F)
Life expectancy(application dependent)	Up to 5 years
Humidity (withnormal use)	0 %RH to 90 %RH @ 40 °C (104 °F)non-condensing
Available housingconfigurations ?	D0 (M16 x 1.5 male), D2 (M16 x 1.5male), D3 (M18 x 1.5 male), B1 (TO8 + flange)
Shelf life	Unlimited
Calibration interval	No calibration required. Calibrationdata stored in smart sensor.

Analyzer (Monitor)Electrical	?
Output signal	4...20 mA Optional: 0...5 V
Digital communications	RS485 / Modbus RTU
Relay contact output	24V DC / 100 mA controlled by an O2-alarm-level (programmable via RS485)
Electrical interface	8-pin M12 on sensor, extension cable from sensor plug to screw terminal on monitor
Operating temperature range (monitor)	+10...+50 °C (+50...+122 °F)
Power Supply	24V DC +/- 10 %
Maximum powerconsumption	6 W or 0.25 A
Mechanical	?
Ingress protection	IP40 (monitor), IP66 (sensor plug)
Housing material	PC (UL 94 V-0) ?
Mounting	DIN rail
Sensor cable length (supplied)	50 cm (19.6 in) with 8 pin M12 connector
Extension cable length	Standard: 3 m (9.8 ft) Optional: 1 m (3.28 ft)
Compliance	CE: According to EU machinery directive EN ISO13849 (performance level non-SIL applications only) and EN 61010-1
