Particulate Matter / PM Sensor - OPC-R2
? Removable fan exit adaptor
? Small size and low power consumption
? Configurable to specific applications
? Pins outs and comms protocol shared with OPC-R1
? Improved detection of sub 0.5 μm particles
? Improved EMC protection
- Model Number: OPC-R2
- Data Sheet:
- Quantity:
- - +
Product Specification

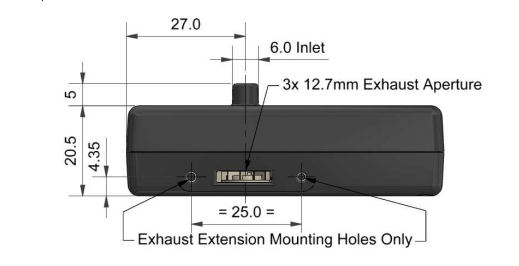

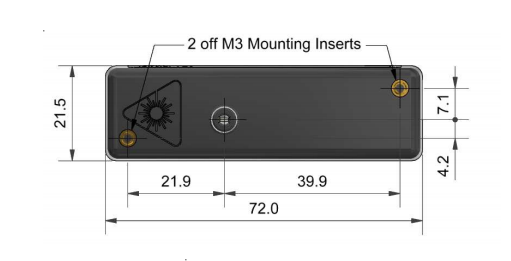

OPC-R2 PM2.5 Sensor Schematic Diagram：
? Reports PM1, PM2.5, PM10 (PM4.25 as an option), plus histograms
? SPI connection for communication and firmware upgrades(SPI interface not included, order code 000-0SPI-00)
? PC software supplied
? Removable fan exit adaptor
? Small size and low power consumption
? Configurable to specific applications
? Pins outs and comms protocol shared with OPC-R1
? Improved detection of sub 0.5 μm particles
? Improved EMC protection
|
OPC-R2 PM2.5 Sensor MEASUREMENT |
||
|
Particle range* |
μm spherical equivalent size (based on RI of 1.5) |
0.30 to 12.4 |
|
Size categorisation |
Number of software bins |
16 |
|
Sampling interval |
Histogram period (seconds) |
2 to 30 |
|
Total flow rate |
L/min (typical) |
0.24 |
|
Max particle count rate |
particles/second |
10,000 |
|
Max coincidence probability |
%concentration at 106 particles/L |
0.7 |
|
* Based on 50% detection efficiency at 0.35μm |
||
|
OPC-R2 PM2.5 Sensor POWER |
||
|
Measurement mode |
mA (typical) |
110 |
|
Standby mode |
mA (typical) |
< 5 |
|
Voltage range |
VDC |
4.8 to 5.2 |
|
Switch-on transient |
mW for 1ms |
< 5000 |
|
OPC-R2 PM2.5 Sensor KEY SPECIFICATIONS |
||
|
Digital interface |
(No data storage) |
SPI Mode 1 |
|
Laser classification |
as enclosed housing |
Class 1 |
|
Temperature range |
℃ |
-10 to 40 |
|
Humidity range |
% rh (continuous) |
0 to 95 (non-condensing) |
|
Warranty |
months |
12 |
|
Weight |
g |
< 30 |
