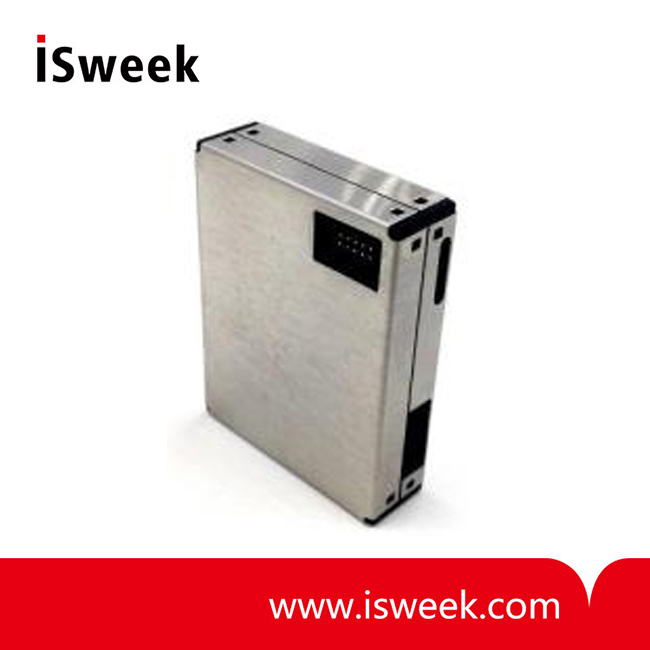

Particulate Matter Sensor - PMS7003

?Zero false alarm rate
?Real-time response
?Correct data
?Minimum distinguishable particle diameter :0.3 micrometer
?High anti-interference performance because of the structure of six sides shielding
?Ultra-thin and ultra-small design, only 12 mm

Model Number: PMS7003
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Particulate Matter Sensor PMS7003 Overview：

PMS7003 is a kind of digital and universal particle concentration sensor,which can be used to obtain the number of suspended particles in the air,i.e.the concentration of particles, and output them in the form of digital interface. This sensor can be inserted into variable instruments related to the concentration of suspended particles in the air or other environmental improvement equipments to provide correct concentration data in time.

Particulate Matter Sensor PMS7003 Main characteristics：

?Zero false alarm rate

?Real-time response

?Correct data

?Minimum distinguishable particle diameter :0.3 micrometer

?High anti-interference performance because of the structure of six sides shielding

?Ultra-thin and ultra-small design, only 12 mm

Particulate Matter Sensor PMS7003 Technical Index：

Parameter	Index	unit
Particle Range of measurement	0.3~1.0；1.0~2.5；2.5~10	Micrometer（μm）
Particle Counting Efficiency	50%@0.3μm 98%@>=0.5μm
Particle Effective Range （PM2.5 standard）	0~500	μg/m³
Particle Maximum Range （PM2.5 standard）*	≥1000	μg/m³
Particle Resolution	1	μg/m³
Particle Maximum Consistency Error (PM2.5 standard data)*	±10%@100~500μg/m3 ±10μg/m3@0~100μg/m3
Particle Standard Volume	0.1	Litre（L）
Temperature Range	0~99	℃
Temperature Resolution	0.1	℃
Humidity Range	0~99	%
Humidity Resolution	0.1	%
Single Response Time	＜1	Second（s）
Total Response Time	≤10	Second（s）
DC Power Supply	Typ:5.0 Min:4.5 Max: 5.5	Volt（V）
Active Current	≤100	Milliampere（mA）
Standby Current	≤200	Milcroampere（uA）
Interface Level	L <0.8 @3.3 H >2.7@3.3	Volt（V）
Working Temperature Range	-10~+60	℃
Working Humidity Range	0~99%
Storage Temperature Range	-40~+80	℃
MTTF	≥3	Year(Y)

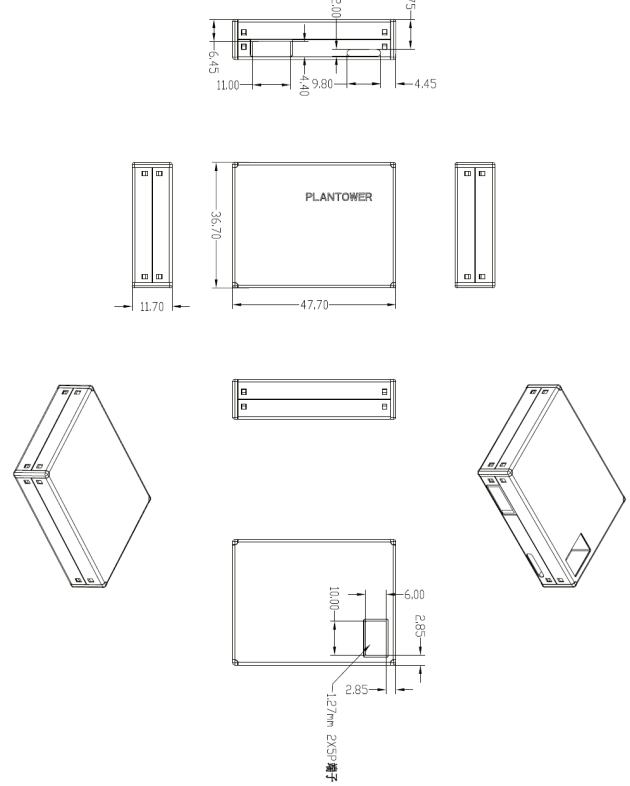

Physical Size	48×37×12	Millimeter（mm）
