Product Specification

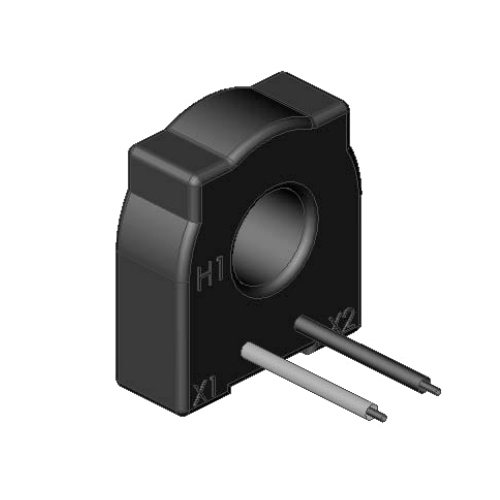

CR Magnetics offers a versatile line of rugged wire lead current transformers. Installed around a current-carrying wire, the sensor provides a current output relative to the AC input current (within specification limits). With the output connected across a resistive load (burden), the voltage developed is proportional to the input current.

Model 18 Remote Electrical Current Indicator Features
? Low cost
? Non-contact, isolated measurement
? Surface Mounting bracket available for Models 17 and 18.
? Two different standard ratios

Model 18 Remote Electrical Current Indicator Features Specifications
? Case Material: Black Thermoplastic
? Construction: Epoxy Encapsulated
? Maximum Continuous Primary Current 4 X Ir.
? Insulation Voltage: 3500 Vac/1min.

Model 18 Remote Electrical Current Indicator Features Applications
? Remote Monitoring of Electrical Loads.
? Input to electrical control system.
? Detect open heater elements
? Indicate Phase Loss
? Monitor Motor Operation.

Model 18 Remote Electrical Current Indicator Features ORDER INFORMATION
