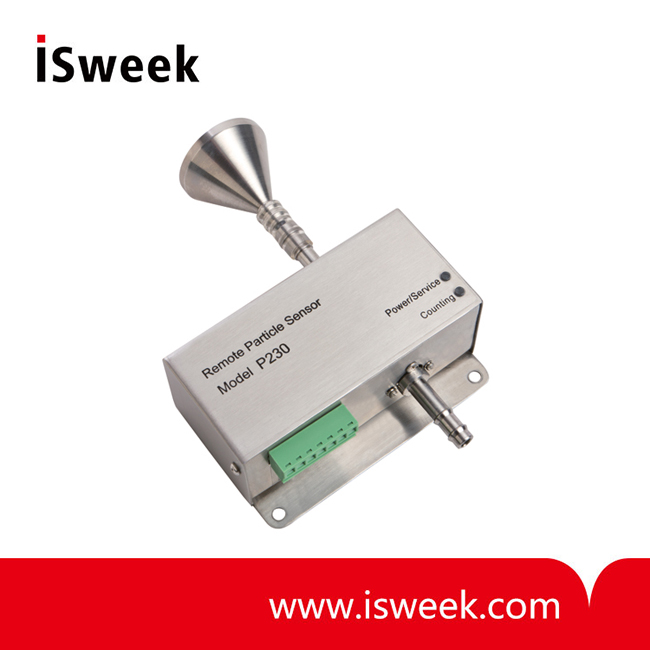

Remote Particle Counter - P230

? Measures 0.3 μm and 0.5 μm
? 0.1 CFM (2.83 LPM) flow rate
? Measures 2 channels of simultaneous data
? Power: 9-30 VDC
? Long life laser diode
? Concentration limit of 2,000,000 per ft3
? Operation temperature: 5 to 35°C
?? Operation humidity?: 20% to 95%RH non-condensing

Model Number: P230
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

P230 Handheld Particle Counter

The P230 remote particle counter measures 0.3 μm and 0.5 μm with a flow rate of 0.1 CFM (2.83 LPM). Integration is easy into a real-time monitoring or building management system via Modbus? RTU or Modbus? ASCII. The P230 is the smallest remote particle counter in the market and has easy mounting options. The P230 complies with ISO 21501-4 and includes a 2 year limited warranty.

P230 Remote Particle Counter Features & Benefits
? Measures 0.3 μm and 0.5 μm
? 0.1 CFM (2.83 LPM) flow rate
? Measures 2 channels of simultaneous data
? Long life laser diode
? Modbus? RTU or Modbus? ASCII outputs
? Concentration limit of 2,000,000 per ft3
? Complies with ISO 21501-4 and JIS B9921 standards
? Lightweight stainless steel enclosure
? Easy to clean and wipe down
? 2 year limited warranty

P230 Remote Particle Counter Specifications

Channel Sizes	0.3 μm and 0.5 μm
Counting Efficiency	50% at 0.3 μm; 100% for particles > 0.45 μm (per JIS)
Concentration Limits	2,000,000 particles / ft³ at 5% coincidence loss
Light Source	Long life laser diode
Zero Count Level	<1 count / 5 minutes (per JIS B9921)
Flow Rate	0.1 CFM (2.83 LPM)
Flow Control	Critical orifice
Vacuum Requirements	External vacuum >15" (38.1 cm) of Hg
Calibration	NIST traceable
Sample Probe/Tubing	Isokinetic sampling probe
Communication Interface	Modbus? RTU or ASCII outputs (specified upon order)
Power	9-30 VDC
Dimensions (L x W x H)	1.8" x 3.7" x 1.5" (4.5 cm x 9.3 cm x 3.8 cm) does not include probes
Weight	0.62 lb (0.28 kg)
Standards	ISO 21501-4 and JIS B9921
Warranty	2 year limited warranty
Operating Conditions	5 to 35°C, 20% to 95%RH non-condensing
Storage Conditions	-20 to 50°C, Up to 98%RH non-condensing
Optional Accessories	Isokinetic sampling probe, purge filter, data cable, vacuum and sample tubing
