Single-channel Fiber Optic Signal Conditioner - FTI-10

Number of channels: 1
Sampling rate: 10 Hz
Averaging: 1 to 500 samples
Precision: 0.025% of full scale
Resolution: 0.01% of full scale
Analog output: ±10 V with screw connectors
Operating temperature?: -20°C to 40°C (-4°F to 104°F)

Model Number: FTI-10
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

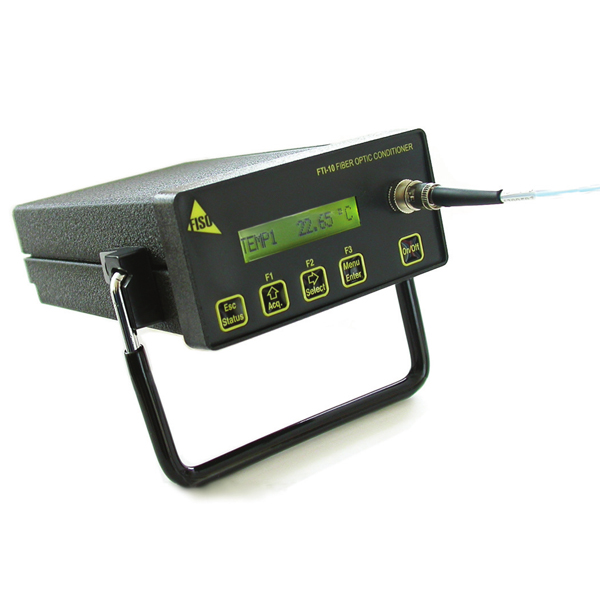

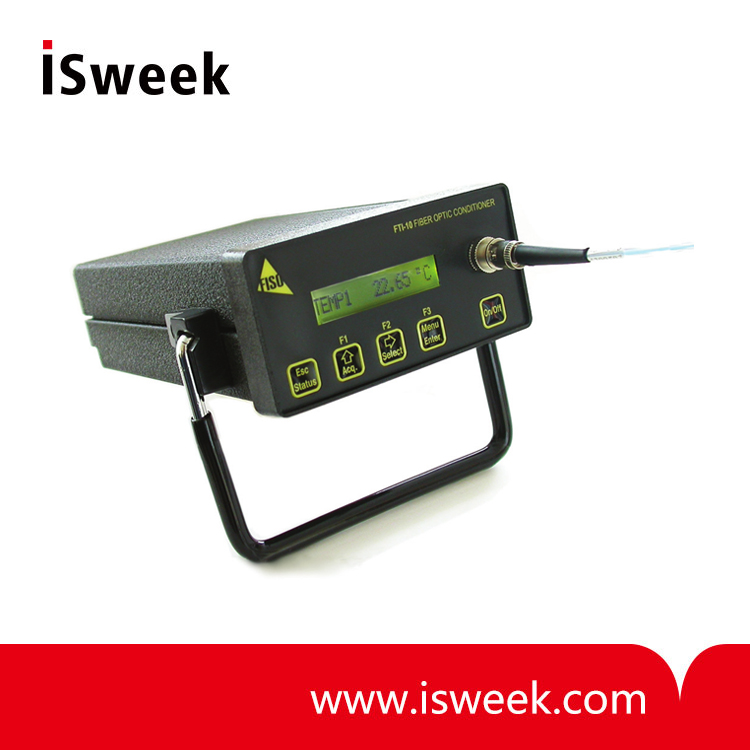

FTI-10 Single-channel Fiber Optic Signal Conditioner Description
The FTI-10 is a single-channel, battery-powered fiber optic signal conditioner especially designed to work with all of FISO’s fiber optic sensors. It is a general purpose instrument ideally suited to perform single-point measurements in a myriad of industrial and R&D applications.

FTI-10 Single-channel Fiber Optic Signal Conditioner Key Features
? Compatible with most of FISO’s fiber optic sensors
? Voltage output and RS-232 communication port
? Backlighted LCD screen
? Small footprint
? Rugged and easy to use
? Battery powered
? 1/8 DIN enclosure

FTI-10 Single-channel Fiber Optic Signal Conditioner Applications
? Microwave food processing
? Thermotherapy
? NMR applications
? Microwave and RF
? High temperature pressure measurements
? Multi-purpose laboratory applications
? Advanced composite materials
? Hazardous environments
? Aerospace applications

FTI-10 Single-channel Fiber Optic Signal Conditioner Specifications:

Number of channels	1
Sampling rate	10 Hz
Averaging	1 to 500 samples
Precision	0.025% of full scale
Resolution	0.01% of full scale
Dynamic range	15 000 : 1
Display	1 line 16 characters liquid crystal display with back-light
Data logging	50 000 data points
Analog output	±10 V with screw connectors
Communication	RS-232
Upgradeability	Flash ROM firmware
Lamp life	40 000 hours of continuous use
Weight	0.9 kg (2 lb)
Dimensions (W x D x H)	90 x 165 x 48 mm (1/8 DIN) (3.5 x 6.5 x 1.9 in)
Autonomy	8 hours with fully-charged battery (0.5 Watt power consumption)
Power requirements	12 Volts DC (wallmount adapter included)
Operating temperature	-20°C to 40°C (-4°F to 104°F)
