Product Specification

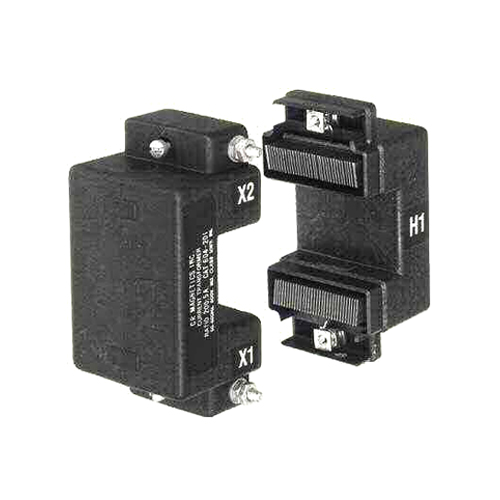

The 604 Series Split Core Current Transformer is designed for assembly to an existing electrical installation without the need for dismantling the primary bus or cables.

The Model 604-1000T is intended for use with high input impedance devices.

The output can be rectified and filtered for devices requiring DC input. The non-linearity and voltage drop of the rectifiers and filters must be considered in the choice of the loading impedance.

604 Series Split-core Current Transformer Features
Terminals: 10-32 brass studs with one flatwasher and two regular nuts
Flexible Leads: UL 1015 105° C, CSA approved, #16 AWG, 24" long unless otherwise specified

604 Series Split-core Current Transformer Specifications
Frequency: 50-400Hz
Insulation Level: 0.6 kV, BIL 10 kV full wave
Continuous Thermal Current Rating Factor:
  Models 604-101 – 604-401:
   1.33 at 30° C amb
   1.00 at 55° C amb
  Model 604-1000T:
   450A at 30° C amb
   350A at 55° C amb
Approximate Weight: 2.5 lbs

604 Series Split-core Current Transformer Applications
For Energy Management Systems and Instrumentation

604 Series Split-core Current Transformer PART NUMBERS
