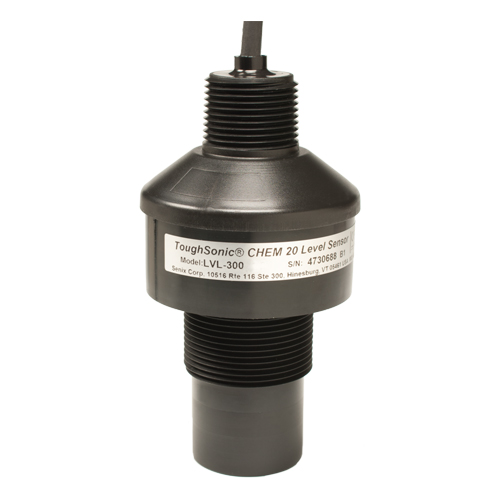

ToughSonic CHEM 20 Ultrasonic Level Sensor - LVL-300 Series

? Optimum Range: 13 ft. (4 m)
? Max Range: 20 feet (6.1 m)
? Deadband: Typ. < 8 in. (20.3 cm)
? Temperature: -40 to 158 ℉ (-40 to 70℃)
? Outputs: Five selectable, plus serial data
? Humidity: 0 to 100% operating
? Transducer: Rugged piezoelectric
? Compensation: Temperature compensated
? Protection: NEMA-4X, NEMA-6P, IP68

Model Number: LVL-300 Series
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

ToughSonic CHEM 20 Level Sensor
Liquids or Solids in Chemically Aggressive Environments

The ToughSonic CHEM 20 is designed for applications where corrosive liquids or gasses are present, but it is an excellent choice for benign environments as well. The maximum range of 20 feet (6.1 meters), it is the mid-range model in the ToughSonic CHEM sensor family.

The ToughSonic CHEM 20 is sealed in a PVDF (Kynar) housing. It is fully submersible, chemical resistant and shock resistant. It has a potted-in 9-wire cable that connects up to five simultaneous analog and/or switch outputs plus a serial interface. It is fully configurable with SenixVIEW configuration and analysis software.

Please see the whole line of ToughSonic and ToughSonic CHEM sensors for alternative ranges, sizes and housing materials.

Non-Contact Ultrasonic Distance & Level Measurement

LVL-300 Series Chemically Resistant Ultrasonic Level Sensor Features
Level Measurements
? Long or short measurements
? Unaffected by optical factors like color and transparency
? Computer (PC) software allows remote adjustment
Packaging & Performance
? Durable housing for long life
? Bottom and top thread mounts
? Short & overload protected I/O
? Adjustable filters compensate for tank mixers or turbulence
? Temperature compensation for improved accuracy
? Adjustable sensitivity
Free Functionality
Use adjustable interface features like switch hysteresis and time delays to build complete solutions such as pump controls to maintain level. Save cost by eliminating PLCs, delay circuits and time delay relays!

LVL-300 Series Chemically Resistant Ultrasonic Level Sensor Specifications

Optimum Range	13 ft. (4 m)	Max Range	20 feet (6.1 m)
Deadband	Typ. < 8 in. (20.3 cm)	Adjustment	SenixVIEW software
Case Material	PVDF	Configuration	Stored in non-volatile memory
Temperature	-40 to 158 ℉ (-40 to 70 ℃)	Outputs	Five selectable, plus serial data
Humidity	0 to 100% operating	Transducer	Rugged piezoelectric
Compensation	Temperature compensated	Protection	NEMA-4X, NEMA-6P, IP68
Resolution	Digital:0.0068 in. (0.172 mm); Analog:4099 steps (0-10 VDC), 3279 steps (4-20 mA)
Repeatability	Nominal 0.2% of range @ constant temp. Affected by target, distance, environment
Update Rate	5 Hz (200 ms), SenixVIEW adjustable; affected by SenixVIEW filter selections
Voltage Output	0-10, 0-5 VDC or PC customized; 10 mA max. (*)
Current Loop #1	Current sourcing 4-20 mA or PC customized, max. loop 450?(*)
Current Loop #2	Current sinking 4-20 mA or PC customized, max. loop 450?(*)
Sinking Switch	150 mA max. @ 40 VDC max., teachable set point & polarity, fault indication
Sourcing Switch	150 mA max. @ input voltage, teachable set point & polarity, fault indication
RS-232, RS-485	Modbus protocol, 9600-115200 baud (selectable), 8 data bits, 1 stop, no parity
Target Requirements
Target	Detects flat or irregular surfaces. Target surface must reflect sound back to sensor.
Max. Distance	Affected by size, shape, orientation of target (sound level reflected back to sensor), environment Restrict use to Optimum Range when using over a wide range of environmental conditions
Granular Solids	De-rate max range by 50%; range affected by material density and orientation
Orientation	Orient sensor beam perpendicular to target surface for best performance
Optical	Unaffected by target color, light level, transparency, or other optical characteristics

LVL-300 Series Chemically Resistant Ultrasonic Level Sensor Connections

Cable Connection	Wire	Description
Power	Brown	10-30 VDC @ 50 mA maximum; Typical:45 mA @ 24 VDC (**)
Ground	Blue	Power and interface common
Voltage Output *	Violet	0-10 VDC, 0-5 VDC or custom end values between 0 and 10 VDC
Current Loop Output *	Green	4-20 mA sourcing (adjustable end values between 4 and 20 mA)
Current Loop Output *	Orange	4-20 mA sinking (adjustable end values between 4 and 20 mA)
Switch #1 Output	Black	Sinking ("NPN") or Sourcing ("PNP"), user selected
Switch #2 Output	White	Sinking ("NPN") or Sourcing ("PNP"), user selected
RS-232 out / RS-485-	Gray	Serial data connection (depends on model - see model selection)
RS-232 in / RS-485+	Yellow	Serial data connection (depends on model - see model selection)

(*) Analog outputs share common distance endpoints. Both 4-20 mA outputs share the same adjustable max / min values. The max. loop resistance is derated below 15 VDC input voltage.
(**) At default update rate. Output currents not included. Sensitivity reduced below 15 VDC input voltage.

LVL-300 Series Chemically Resistant Ultrasonic Level Sensor Part Numbers

Model Number	Description
LVL-300-232	Serial RS-232 interface (PC COM port compatible)
LVL-300-485	Serial RS-485 interface (allows addressable multi-sensor networks)
also offers interconnection, communication, mounting, and display components
