UV Radiometer 2.0 - GUVx-T1xGS2-3LWLO
- High Temperature Environment (under 200°C)
- Output of Display: Relay, 4-20mA & RS485 (Option)
- Fixing method: Panel Insertion
- Power Consumption: Max 5VA
- Detection Power Range: 0~1000?/?
- Detection Range:
GUVA-T13GS2-3LWLO: 230~395nm
GUVC-T11GS2-3LWLO: 220~280nm
- Model Number: GUVx-T1xGS2-3LWLO
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
GUVx-T1xGS2-3LWLO UV Radiometer 2.0 Description
High Temperature Environment (under 200°C), Output of Display : Relay, 4-20mA (Option), RS485 (Option)GUVx-T1xGS2-3LWLO UV Radiometer 2.0 Constitution

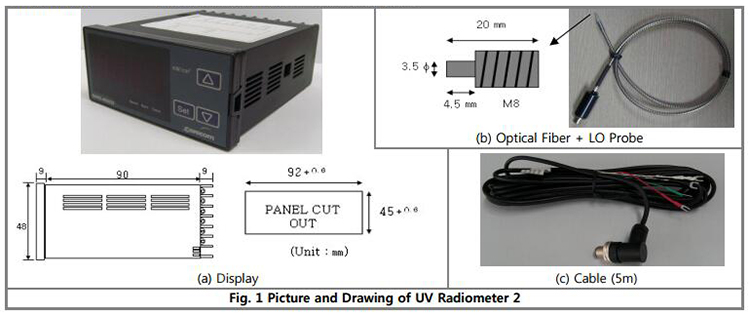

Display, Optical Fiber + LO Probe, Cable
GUVx-T1xGS2-3LWLO UV Radiometer 2.0 Case Dimensions
|
Display |
LO Probe Diameter (mm) |
LO Probe Length (mm) |
Optical Fiber Length (m) |
|
|
Size |
Panel Cut Out |
|||
|
95 x 48 x 118mm3 |
92 x 45mm2 (-0,+0.6mm) |
20 | 56 | 1 |
GUVx-T1xGS2-3LWLO UV Radiometer 2.0 Absolute Maximum Ratings
|
Parameter |
Value |
Unit |
Remark |
||
|
Min. |
Typ. |
Max. |
|||
|
Operating Temperature |
|
|
200 |
°C |
Optical Fiber |
|
-30 |
|
85 |
°C |
LO Probe |
|
|
0 |
|
50 |
°C |
Display |
|
|
Power Consumption |
|
|
5 |
VA |
|
GUVx-T1xGS2-3LWLO UV Radiometer 2.0 Electro-Optical Characteristics (at 25°C)
|
Parameter |
Value |
Unit |
Remark |
|||
|
Min. |
Typ. |
Max |
||||
|
Detection Range |
GUVA-T13GS2-3LWLO |
230 |
|
395 | nm |
|
|
GUVC-T11GS2-3LWLO |
220 |
|
280 |
nm |
|
|
|
Detection Power Range |
0 |
|
1000 | mW/cm2 |
|
|
