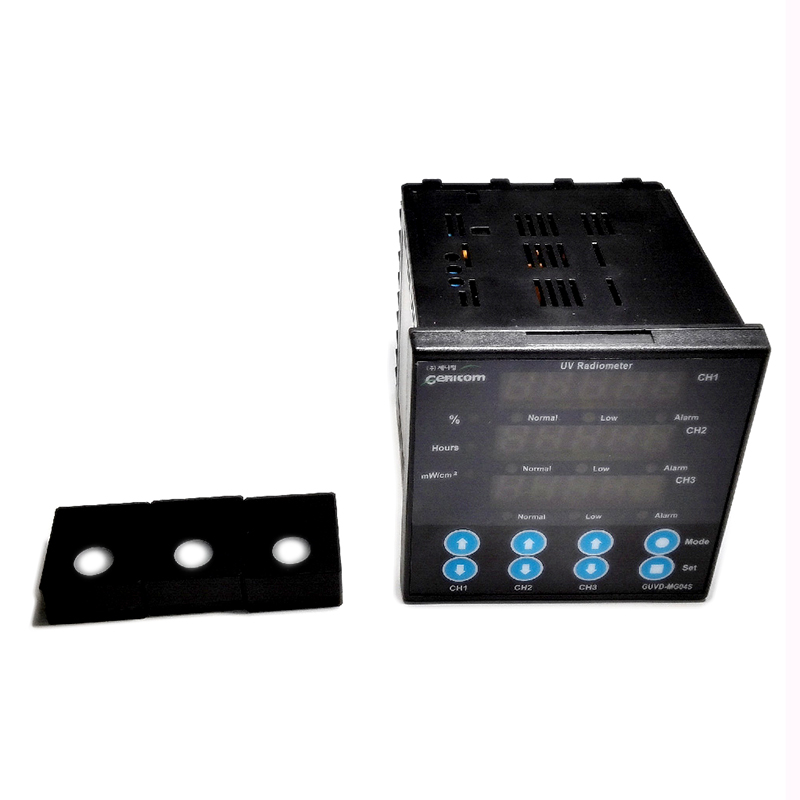

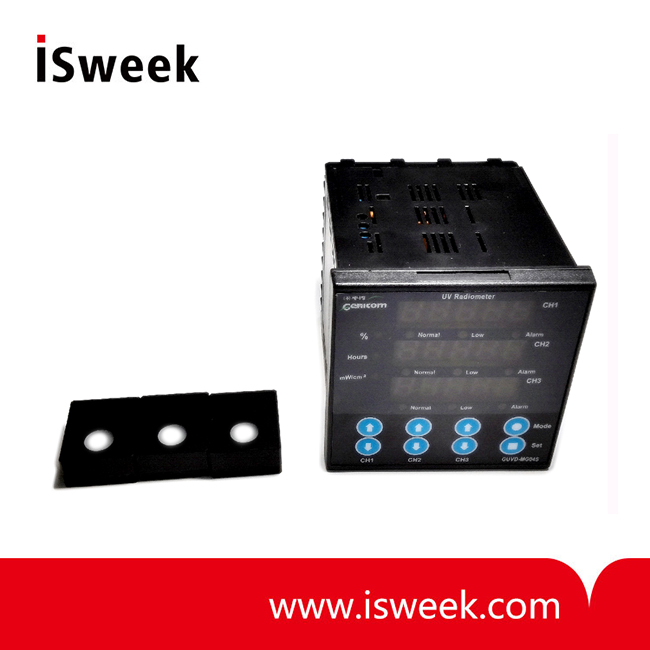

UV Radiometer 4 - GUVx-T1xGS4-LA5
- UV Radiometer 4 is 3 Channel indicator
- 3 type display, and 2 type output (Relay and 4-20mA)
- Power : AC 200 ~ 240V (50/60Hz)
- Detection Power Range: 0~100 ?/?
- Detection Range:
GUVV-T10GS4-LA5: 230~395nm
GUVB-T11GS4-LA5: 220~320nm
GUVC-T10GS4-LA5: 220~280nm
GVBL-T12GS4-LA5: 330~445nm
- Model Number: GUVx-T1xGS4-LA5
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
GUVx-T1xGS4-LA5 UV Radiometer 4 Description
UV Radiometer 4 is 3 Channel indicator. There are 3 type display, and 2 type output (Relay and 4-20mA).3 type display is the absolute power, relative power, and accumulative time.
GUVx-T1xGS4-LA5 UV Radiometer 4 Applications
UV Curing
Display, Sensor Probe 3 ea, Connection Cable 3 ea (5 m)
GUVx-T1xGS4-LA5 UV Radiometer 4 Sensor Probe Dimensions
|
Size (W×L×H, mm3) |
Window (mm) |
Weight (g) |
Case Material |
Cable Length (m) |
| 36 x 30 x 16 | 12 | 40 | AL-60 | 5 |

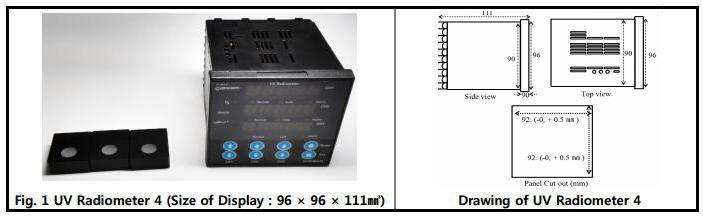

GUVx-T1xGS4-LA5 UV Radiometer 4 Dimensions
|
Size (W×L×H, mm3) |
Window (mm) |
Weight (g) |
Case Material |
Cable Length (m) |
| 96 x 96 x 111 | - | 410 | ABS | - |
GUVx-T1xGS4-LA5 UV Radiometer 4 Absolute Maximum Ratings
|
Parameter |
Value |
Unit |
Remark |
||
|
Min. |
Typ. |
Max. |
|||
|
Operating Temperature |
-30 |
|
85 |
°C |
Sensor Probe |
|
0 |
|
50 |
°C |
Display |
|
|
Working humidy |
35 |
|
85 |
%RH |
|
|
Power Supply |
200 |
|
240 |
VAC |
50/60 ? |
GUVx-T1xGS4-LA5 UV Radiometer 4 Electro-Optical Characteristics (at 25°C)
|
Parameter |
Value |
Unit |
Remark |
|||
|
Min. |
Typ. |
Max. |
||||
|
Detection Power Range |
0 |
|
100 | mW/cm2 |
|
|
|
Detection Range |
GUVV-T10GS4-LA5 |
230 |
|
395 | nm |
10% of Max |
|
GUVB-T11GS4-LA5 |
220 |
|
320 |
nm |
||
|
GUVC-T10GS4-LA5 |
220 |
|
280 |
nm |
||
|
GVBL-T12GS4-LA5 |
330 |
|
445 | nm | ||
GUVx-T1xGS4-LA5 UV Radiometer 4 Function
1. Display : Relative Power (%), Accumulative Time (Hours), and Absolute Power (mW/cm2)
3 Color LED : Green LED (Over C-03), Yellow LED(C-04 ~ C-03), Red LED (Under C-04)
2. Output : DC Voltage (1~5V DC), DC Current (4-20mA, 300 ? max load), Relay (NC/NO, 250VAC 3A/30VDC 3A)
