Product Specification

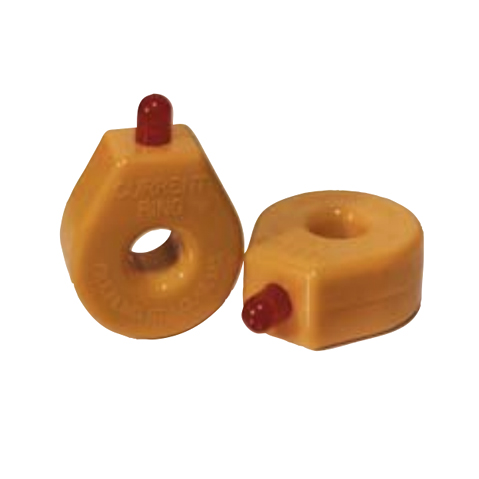

The CR45 series of Wire-Mounted Electrical Current Indicators provides an effective method of monitoring electrical current. The indicator is attached directly to a current-carrying wire. When the current exceeds the turn-on point, the LED will illuminate to indicate the presence of current.

CR45 Series Wire-mounted Electrical Current Indicator Features
? Self powered
? Red or green indicator
? Easy to Install
? Supplied with plastic tie
? Bright yellow case for easy identification
? Panel mounting bracket available

CR45 Series Wire-mounted Electrical Current Indicator Specifications
? Turn-on Point (1 Pass): 2.0 for Red
? Turn-on Point (1 Pass): 2.5 for Green
? Max. Continuous Current: 100 Amps
? Frequency: 50 to 60 Hz

CR45 Series Wire-mounted Electrical Current Indicator Applications
? Monitor status of heater elements
? Observe remote loads
? Indicate phase loss
? Monitor motor operation

CR45 Series Wire-mounted Electrical Current Indicator PART NUMBERS
