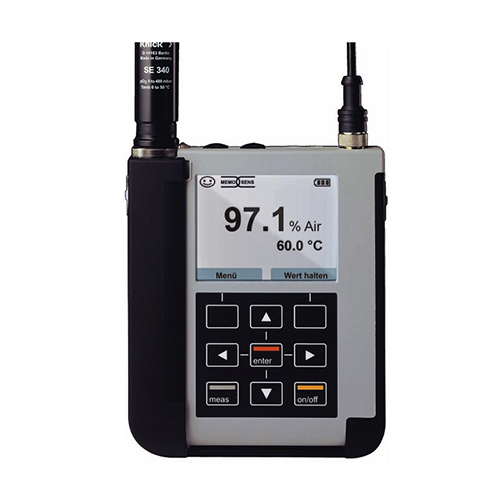

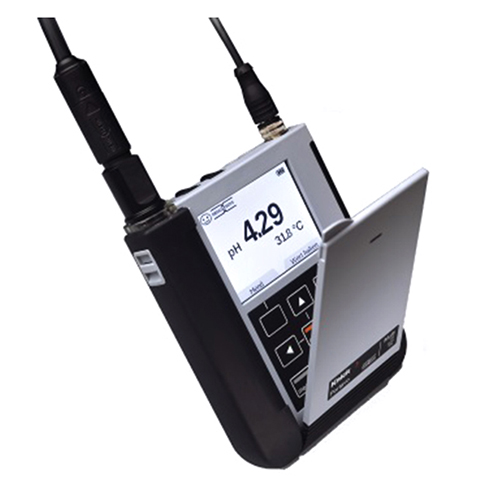

All-in-one Solution for Optical Oxygen Measurement - Portavo 907 Multi Oxy

- High-resolution color graphic display
- Transflective and sunlight readable
- Li-ion battery
- Optical oxygen sensor
- Integrated pressure measurement for compensating air pressure fluctuations
- Micro USB port and Paraly SW 112 software

Model Number: Portavo 907 Multi Oxy
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Portavo 907 Multi Oxy

The all-in-one solution for optical oxygen measurement. Multiparameter device for digital pH, conductivity and oxygen sensors with Memosens technology

The only portable device for all Memosens parameters. The powerful Li-ion battery can be charged in the device via USB. The clear network diagram provides an at-a-glance view of the sensor condition.

The data logger for up to 10,000 entries r-ecords measuring point, annotation, sensor ID, sensor serial number (Memosens), primary value, temperature, time stamp and device status.

User-friendly software

Portavo 907 proves that a high level of functionality and easy use are not mutually exclusive. It proceeds step by step through the calibration procedure. Technical terms are clearly explained in the context-- sensitive help.

Portavo 907 Multi Oxy Optical Oxygen Measurement Facts
- High-resolution color graphic display
- Transflective and sunlight readable
- Li-ion battery
- Optical oxygen sensor
- Integrated pressure measurement for compensating air pressure fluctuations
- Micro USB port and Paraly SW 112 software
- A sensor quiver protects the sensor from damage and drying out
- The high-performance polymer housing ensures low water absorption and high impact resistance
- Intelligent data logger with 10,000 entries and graphical representation
- IP 66/67 protection
- The mineral glass display is perfectly readable even after years

Comprehensive data logger
The following logging types can be selected:
- Manual logging
- Time-controlled logging at a fixed interval
- Signal-controlled logging of measured value and temperature
- Combined time- and signal-controlled logging
- Threshold-controlled logging with pre-trigger

Portavo 907 Multi Oxy Optical Oxygen Measurement Specifications

Optical oxygen input	M12 socket for SE 340 sensor or Memosens sensors
	OXY meas. ranges at 20 °C	Saturation	0.000 ... 200.0 %
		Concentration	000 μg/l … 20.00 mg/l
		Partial pressure	0.0 … 1000 mbars
	Response time	t90 < 30 s
		t99 < 60 s
	Measurement error	Zero signal < 0.1 % full saturation
	Measuring cycle	Approx. 1 s
	Measurement error	< 0.1 % meas. val.
	Temperature meas. range	0.0 … 50.0 °C
	Measurement error	Temperature ± 0.2 K
Sensor standardization	Automatic calibration in air, humidity adjustable
	Zero calibration
	Max. overpressure	2.5 bars
	Immersion depth	min. 60 mm
		max. 25 m
Storage Temperature input	Quiver
	2 x 4 mm dia. for integrated or separate temperature detector
	Measuring ranges	NTC 30 kΩ	-20 … +120 °C
		Pt 1000	-40 … +250 °C
	Measuring cycle	Approx. 1 s
	Measurement error1,2,3) < 0.2 K (Tamb = 23 °C)		TC < 25 ppm/K
Memosens pH input (also ISFET)	M8 socket, 4 pins, for Memosens lab cable and M12 socket, 8 pins
	Display ranges	pH	-2.000 … +16.000
		mV	-2000 … +2000 mV
		Temperature	-50 … +250 °C
Memosens ORP input	M8 socket, 4 pins, for Memosens lab cable and M12 socket, 8 pins
	Display ranges	mV	-2000 … +2000 mV
		Temperature	-50 … +250 °C
	Sensor standardization	ORP calibration (zero adjustment)
	Permissible calibration range	ΔmV (offset)	-700 … +700 mV
Sensor standardization Operating modes Calimatic buffer sets Permissible calibration range	pH calibration
	Calimatic	Calibration with automatic buffer recognition
	Manual	Manual calibration with entry of individual buffer values
	Data entry	Data entry of zero and slope
	Knick CaliMat	Ciba (94)	User defined
	NIST technical	HACH	Mettler-Toledo
	NIST standard	Hamilton	WTW techn. buffers
	DIN 19267	Reagecon
	Zero point	6 ... 8 pH
	With ISFET:	–750 … +750 mV operating point (asymmetry)
	Slope	Approx. 74 … 104 %
Calibration timer*) Sensoface	Interval	1 … 99 days, can be switched off
	Provides information on the sensor condition
	Evaluation of	zero/slope, response, calibration interval
