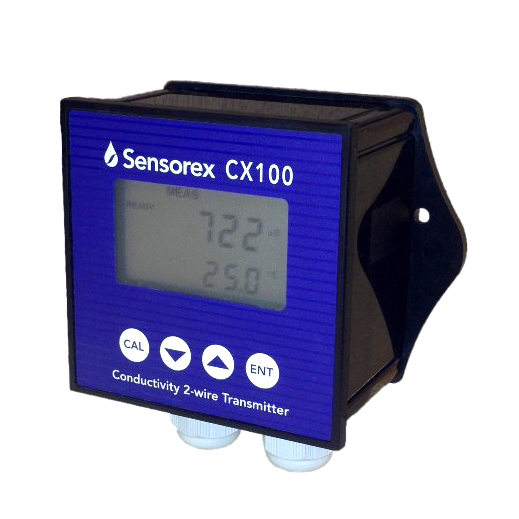

Loop-Powered Contacting Conductivity Transmitter - CX100

? Accuracy: ±1% of full scale reading in respective range
? Temperature: 0 °C to 100 °C (32 °F to 212 °F)
? Temperature Resolution: 0.1 °C (0.1 °F)
? Relative Temperature Accuracy: ±0.5 °C (±0.9 °F)
? Sensor Pt100: (3 wire / 2 wire)
? Power Requirements: 12 to 24V DC, maximum 600 Ohm load
? Certifications: CE

Model Number: CX100
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

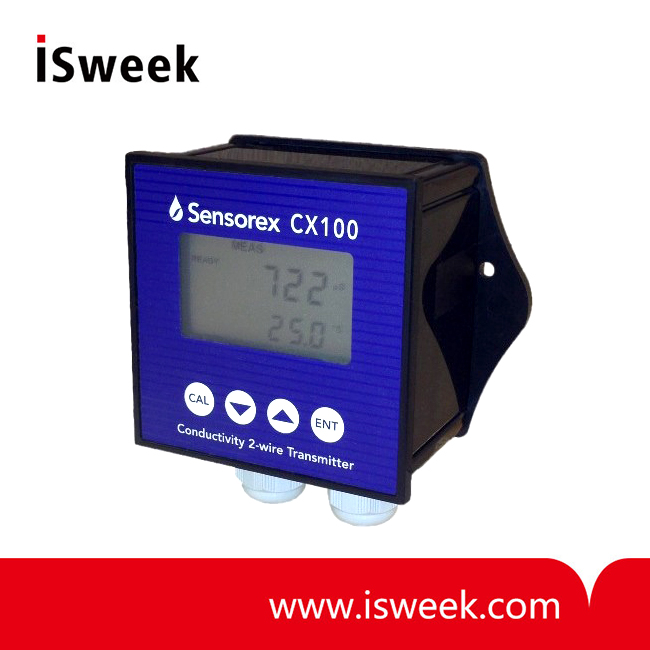

CX100 Loop-Powered Contacting Conductivity Transmitter
Item No.: CX100

CX100 Loop-Powered Contacting Conductivity Transmitter Features
? Six selectable conductivity ranges for a wide range of measurements
? Isolated Output prevents output interference caused by electrical noise or leakage from the input source
? Out-of-range Output Current Indicator indicates an out-of-range measurement by emitting a 3.8mA output current
? Hold Output Current Indicator to indicate ‘HOLD’ mode during calibration or set up mode.
? Scaleable 4-20 mA Current Output
? Primary and secondary display for simultaneous display of Conductivity and Temperature values
? Easy Push Button Operation
? Automatic (with Pt 100) or manual Temperature Compensation
? Panel or Wall Mount, Nema 4x, IP65 Weatherproof Housing

CX100 Loop-Powered Contacting Conductivity Transmitter Description
This isolated output 4-20mA industrial transmitter, a sturdy microprocessor-based instrument, measures conductivity and temperature. It transmits conductivity measurements via a two-wire power supply loop. The industrial transmitter has many user friendly features - all of which are easily accessible via the water resistant membrane keypad. Ideal for connecting to a PLC for advanced control systems, the transmitter can also be connected to a recorder for a low-cost documentation system. The instrument housing is designed for panel or wall mounting.

CX100 Loop-Powered Contacting Conductivity Transmitter Specifications

Conductivity Ranges	R1: 0-19.99 μS/cm, 0.01 μS/cm resolution R2: 0-199.9 μS/cm, 0.1 μS/cm resolution R3: 0-1999 μS/cm, 1μS/cm resolution R4: 0-10.00 mS/cm, 0.01 mS/cm resolution R5: 0-19.99 mS/cm, 0.01 mS/cm resolution R6: 0-199.9 mS/cm, 0.1 mS/cm, resolution
Cell Constants	k=0.1, R1-R5 k=1.0, R1-R6 k= 10.0, R2-R6
Accuracy	±1% of full scale reading in respective range
Temperature	0 °C to 100 °C (32 °F to 212 °F)
Temperature Resolution	0.1 °C (0.1 °F)
Relative Temperature Accuracy	±0.5 °C (±0.9 °F)
Sensor Pt100	(3 wire / 2 wire)
Temperature Compensation	Auto/Manual
Output	4.0-20.0mA (Galvanically isolated)
Cell Constant User-Selectable	(0.10 to 10.00)
Temperature Coefficient	0 to 10% (selectable)
Normalization Temperature	20.0 °C to 25 °C
Display	Dual Display Custom LCD
Power Requirements	12 to 24V DC, maximum 600 Ohm load
Dimension	96 x 96 x 66 mm (3.78 x 3.78 x 2.6 inch)
Weight	210 g
Certifications	CE
