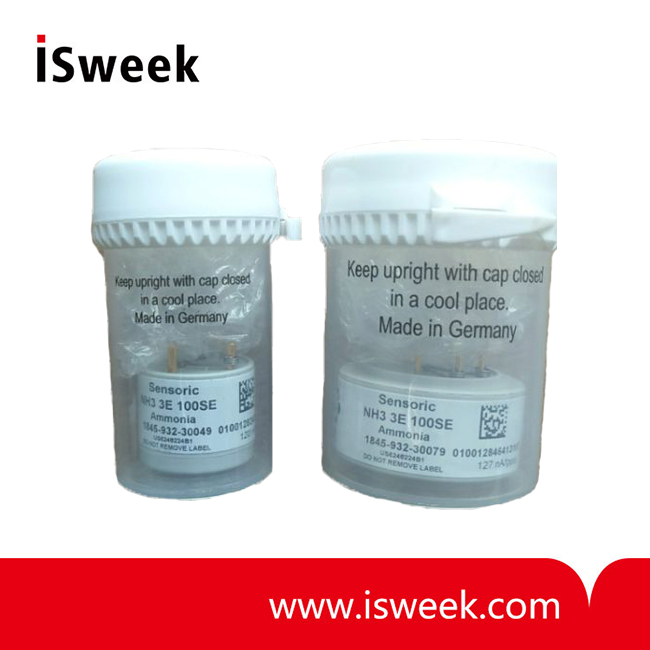

Ammonia Sensor (NH3 Sensor) - NH3-3E100SE

? Measuring Range: 0-100 ppm
? Sensitivity Range: 130 nA/ppm ± 30 nA/ppm
? Resolution at 20°C: < 1 ppm
? Linearity: < 10% full scale
? Operation Temperature Range: -20°C to +40°C
? Operation Humidity Range?: 15-90% r.H, non-condensing

Model Number: NH3-3E100SE
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

NH3-3E100SE Ammonia Sensor NH3 Sensor Description
NH3-3E100SE Ammonia Sensor, 3 Electrode sensor; available in Mini, Classic, 4-Series and 7-Series formats.

NH3-3E100SE Ammonia Sensor NH3 Sensor FEATURES
? Amperometric 3 electrode sensor cell
? Very stable zero reading
? Very selective
? Highly sensitive
? Hydrous electrolyte

NH3-3E100SE Ammonia Sensor NH3 Sensor TYPICAL APPLICATIONS
? TLV-monitoring, leakage detection
? portable & fixed point applications
? Food & Refrigeration Industry, General Industry, Semiconductor Industry

NH3-3E100SE Ammonia Sensor NH3 Sensor PART NUMBER INFORMATION

Mini	1845-932-30009
Sensoric Classic	1845-932-30069
CTL 4 series adaptation	1845-932-30049
CTL 7 series adaptation	1845-932-30079

NH3-3E100SE Ammonia Sensor NH3 Sensor TECHNICAL SPECIFICATIONS

Measuring Range	0-100 ppm
Sensitivity Range	130 nA/ppm ± 30 nA/ppm
Zero Current at 20°C	< ± 100 nA
Resolution at 20°C	< 1 ppm
Bias Potential	0 mV
Linearity	< 10% full scale
Response Time at 20°C t50 t90	< 20 s calculated from 5 min. exposure time < 60 s calculated from 5 min. exposure time
Long Term Sensitivity Drift	< 5% per 6 months
Operation Conditions Temperature Range Humidity Range	-20°C to +40°C 15-90% r.H, non-condensing
Effect of Humidity Sensor Life Expectancy Warranty	> 24 months in air* 12 months
