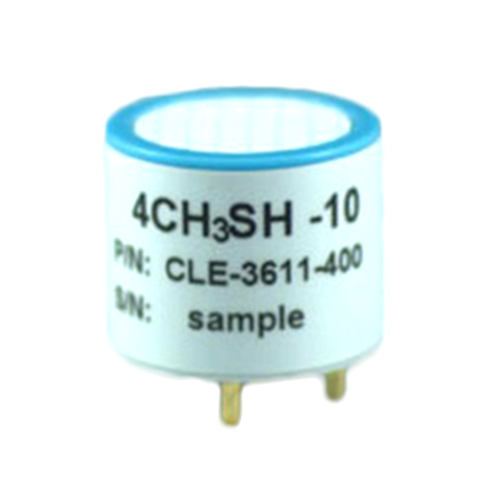

Classic Line 4-CH3SH-10 Methyl Mercaptan Sensor 0-10 ppm - CLE-3611-400
? Nominal Range: 10 ppm
? Maximum Overload: 20ppm
? Sensitivity: 0.70 ± 0.15 μA/ppm
? Resolution: 0.1 ppm
? Response Time (T90): ≤ 35 seconds
? Linearity: Linear
? Temperature Range: -20°C to 50°C
? Operating Humidity: 15 ~ 90%RH non-condensing
- Model Number: CLE-3611-400
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
Classic Line 4-CH3SH-10 Sensor
Methyl Mercaptan Sensor 0-10 ppm
4-CH3SH-10 Methyl Mercaptan Sensor Specification
|
Performance Characteristics |
|
|
Part number |
CLE-3611-400 |
|
Nominal Range |
10 ppm |
|
Maximum Overload |
20 ppm |
|
Sensitivity |
0.70 ± 0.15 μA/ppm |
|
Baseline (20°C) |
< ± 0.2 μA |
|
Baseline Drift (-20 to 50°C) |
0 to 0.6 ppm equivalent |
|
Resolution |
0.1 ppm |
|
Response Time (T90) |
≤ 35 seconds |
|
Linearity |
Linear |
|
Long Term Output Drift |
<2% signal/month |
|
Operation Conditions |
|
|
Temperature Range |
-20°C to 50°C |
|
Operating Humidity |
15 ~ 90%RH non-condensing |
|
Pressure Range |
Atmospheric ±10% |
|
Bias Potential |
0 mV |
|
Storage Life |
6 months in RAE container |
|
Storage Temperature |
0°C to 20°C |
|
Expected Operating Life |
2 years in air |
|
Warranty |
12 months from date of despatch |
|
Physical Characteristics |
|
|
Weight |
5 g (approx) |
|
Orientation Sensitivity |
None |

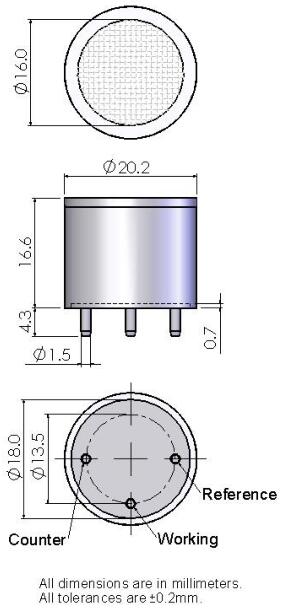

4-CH3SH-10 Methyl Mercaptan Sensor Outline Dimensions
