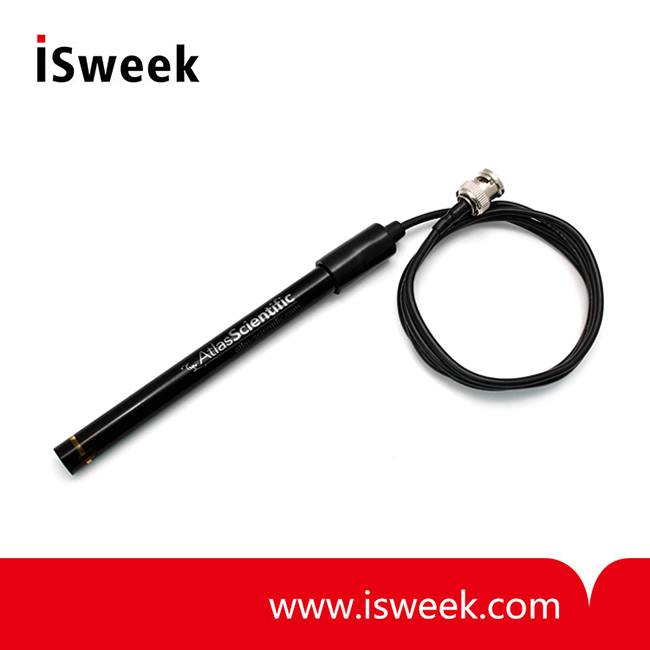

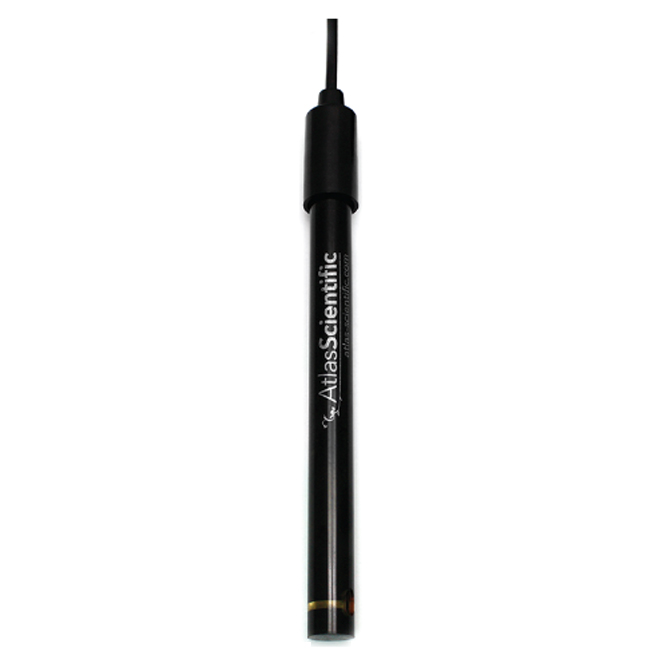

Conductivity Probe K 1.0 - ENV-40-EC-K1.0

? Reads: Conductivity
? Range: 5 - 200,000 μS/cm
? Response time: 90% in 1s
? Max pressure: 3,447 kPa (500 PSI)
? Max depth: 343 meters (1,125 ft)
? Temperature range: 1 - 110 °C
? Measuring Surface: Graphite
? Weight: 51 grams
? Dimensions: 12mm x 150mm (0.47" x 6")

Model Number: ENV-40-EC-K1.0
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

ENV-40-EC-K1.0?Conductivity Probe K 1.0?Operating principle
An E.C. (electrical conductivity) probe measures the electrical conductivity in a solution. It is commonly used in hydroponics, aquaculture and freshwater systems to monitor the amount of nutrients, salts or impurities in the water.

Inside the conductivity probe, two electrodes are positioned opposite from each other, an AC voltage is applied to the electrodes causing cations to move to the negatively charged electrode, while the anions move to the positively electrode. The more free electrolyte the liquid contains, the higher the electrical conductivity.

This Conductivity probe can be fully submerged in fresh or salt water, up to the BNC connector indefinitely.

ENV-40-EC-K1.0?Conductivity Probe K 1.0?Typical Applications
? Standard Lab use
? Field use
? Aquarium
? Hydroponics
? Food Safe
? Fish keeping
? Mixed aqueous/organic
? Samples containing Heavy metals
? Soil Samples
? Strong reducing agents

ENV-40-EC-K1.0?Conductivity Probe K 1.0?Specifications

Reads	Conductivity
Range	5 - 200,000 μS/cm
Response time	90% in 1s
Max pressure	3,447 kPa (500 PSI)
Max depth	343 meters (1,125 ft)
Temperature range	1 - 110 °C
Cable length	1 meter
Internal temperature sensor	No
Time before recalibration	~10 years
Life expectancy	~10 years
Maintenance	N/A
Weight	51 grams

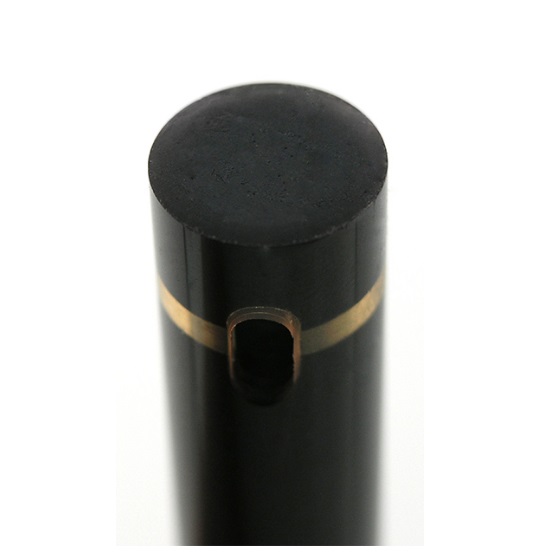

Measuring Surface	Graphite
Dimensions	12mm x 150mm (0.47" x 6")
BNC connector	Yes
Sterilization	Chemical only
