Product Specification

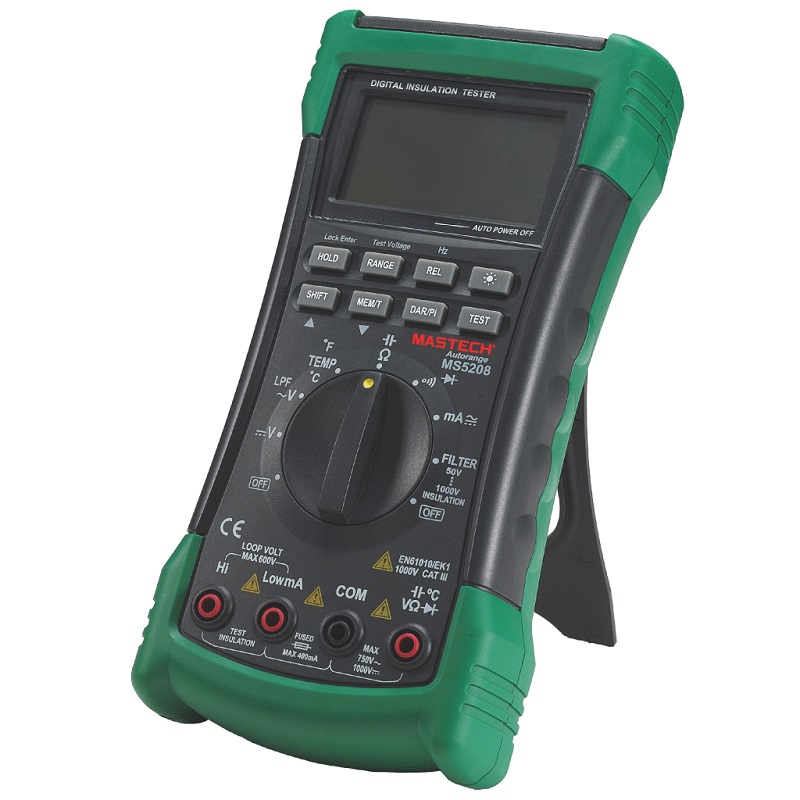

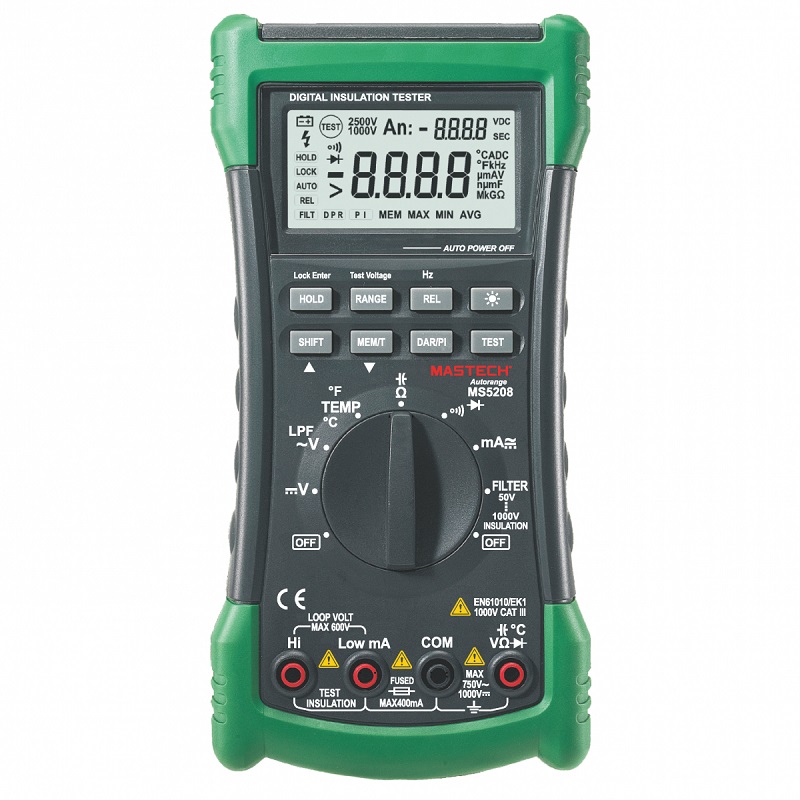

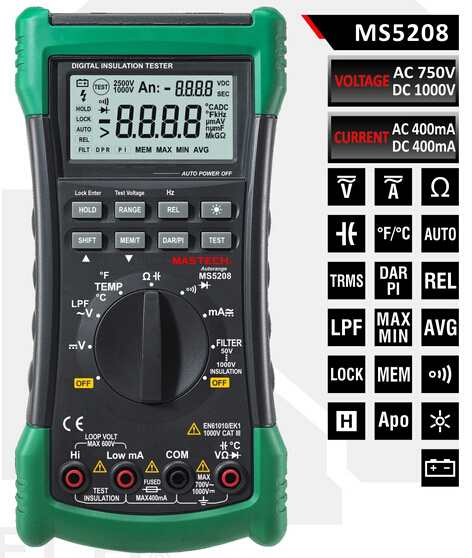

MS5208 Digital Insulation Multimeter Introduction
This style of digital multimeter is designed and manufactured according to the safety requirements set out by EN61010-1, EN61010-2-030 standards for electronic test instruments. Its design and manufacture is strictly based on the provisions in the 1000V CAT III, 600V CAT IV of IEC61010-1 and the Stipulation of 2-Pollution Grade.

his meter is a Digital Insulation Multimeter with broad range of measurement, which can be used to measure DC voltage, AC voltagem, current, AC current, resistance, capacitance, frequency and temperature.

MS5208 Digital Insulation Multimeter Features
? Display 6600 counts
? Auto & Manual Ranging
? Auto Power Off
? True RMS For AC Voltage & AC Current
? DAR/PI Mode
? Relative Measurement
? Continuity Buzzer <30?
? Diode Open Voltage 2.4V
? Low Pass Filter Function (1kHz)
? LOCK
? Data Logging 100 Groups
? Data Recording
? MAX/MIN/AVG
? Data Hold
? Display Backlight
? Low Battery Display

MS5208 Digital Insulation Multimeter General Specifications
? Power Supply: 4 x 1.5V AA Batteries
? Product Size: 205mm x 102mm x 58mm / 8.1" x 4.0" x 2.3"
? Product Weight: 390g/0.86lb
? Certificate: CE / ETL / RoHS
? Safety Rating: CAT III 1000V

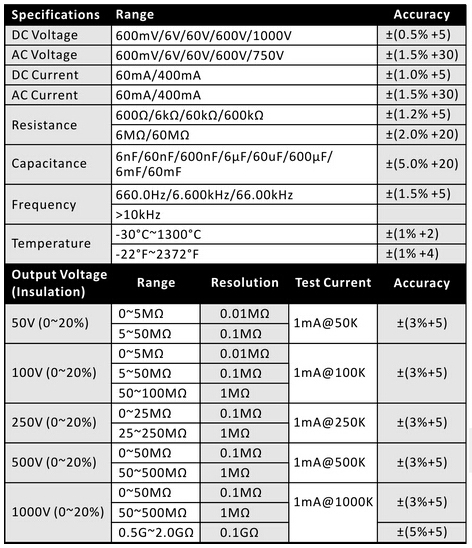

MS5208 Digital Insulation Multimeter Specifications
