Product Specification

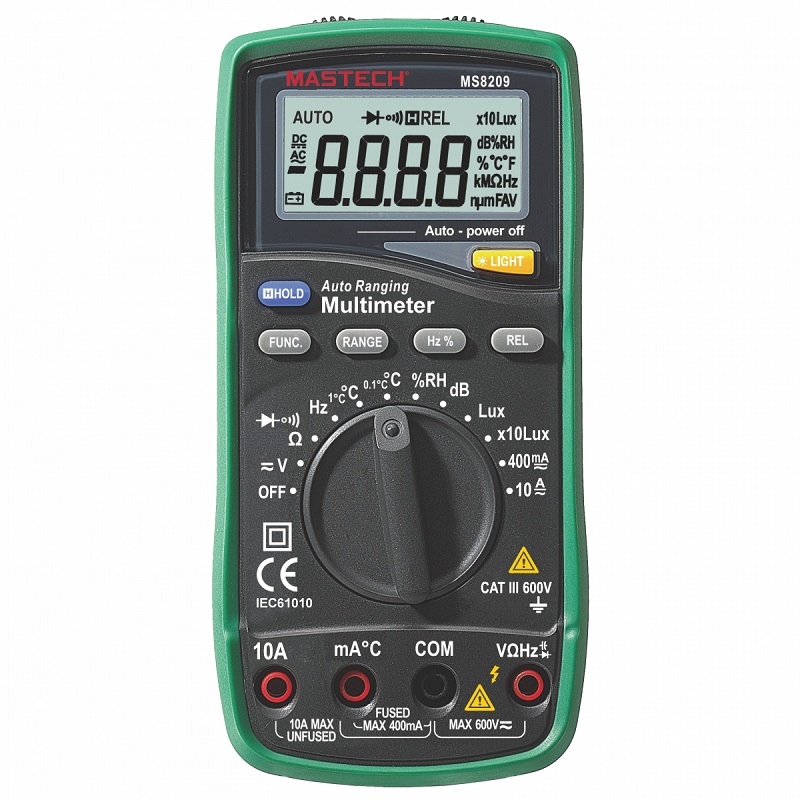

MS8209 Digital Multimeter Description
- The 5 in 1 digital multi-tester has been designed to combine the functions of Sound Level Meter, Light Meter, Humidity Meter, Temperature Meter and Digital Multimeter.
- The Sound Level function can be used to measure noise in factories, schools, offices, airports, home, etc., checking acoustics of studios, auditoriums and hi-fi installations.

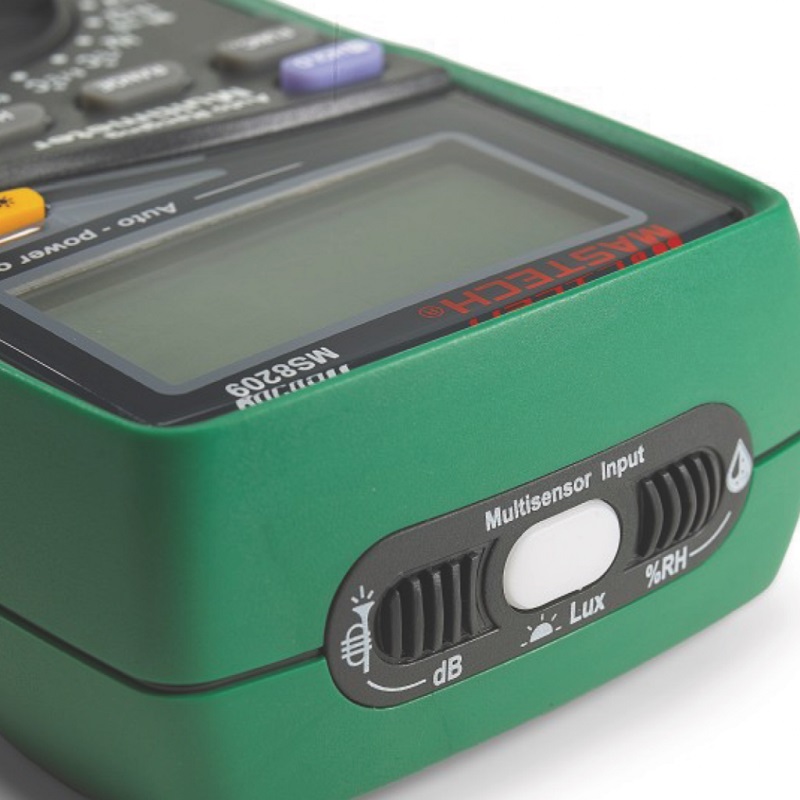

- The Light function is used to measure illuminance in the field. It is fully cosine corrected for the angular incidence of light. The light sensitive component used in the meter is a very Stable, long life silicon diode.
- The Humidity/Temperature is for use a humidity semiconductor sensor and K type thermocouple.
- The digital Multimeter performs AC/DC Voltage, AC/DC Current, Resistance, Frequency, Duty, Capacitance measurement and Continuity, Diode test.
- This meter is a portable professional measuring instrument with large LCD and back light easily reading. Single operation of a range switch makes measurement convenient. Overload protection and low battery indication are provided. It is an ideal multi-function Instrument with scores of practical applications for professional, workshop, school, hobby and home use.
- When using, it can show ranges engineering unit enunciators measuring results.
- This meter has function of auto range and manual range.
- This meter has function of auto power off.
- This meter has function of data hold.
- This meter has function of relative measuring.

MS8209 Digital Multimeter Features
? Display 4000 counts
? Auto & Manual Ranging
? Auto Power Off
? Diode Open Voltage 1.5V
? Continuity Buzzer <40?
? Relative Measurement
? Data Hold
? Low Battery Display
? Display Backlight

MS8209 Digital Multimeter General Specifications
? Power Supply: 1 x 9V 6F22 Battery
? Product Size: 158mm x 78mm x 39mm / 6.2" x 3.1" x 1.5"
? Product Weight: 260g/0.55lb
? Certificate: RoHS
? Safety Rating: CATIII 600V

MS8209 Digital Multimeter Specifications
