Indoor Air Quality (IAQ) Monitor - IAQ

? PM1, PM2.5, PM10: 0.3~1.0; 1.0~2.5; 2.5~10 μm
? CH2O Effective Range: 0~1 mg/m3
? CO2 Effective Range: 0~3000 ppm
? TVOC Effective Range: 1 ~ 30 ppm of EtOH
? Temparture Range: 0 - 99 °C
? Humidity Range: 0-99 %RH
? Input Voltage: 5 VDC (micro-USB)

Model Number: IAQ
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

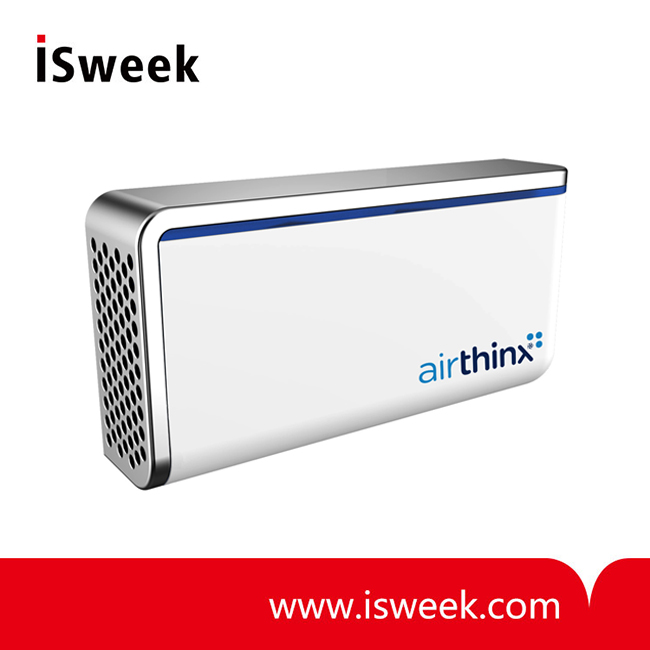

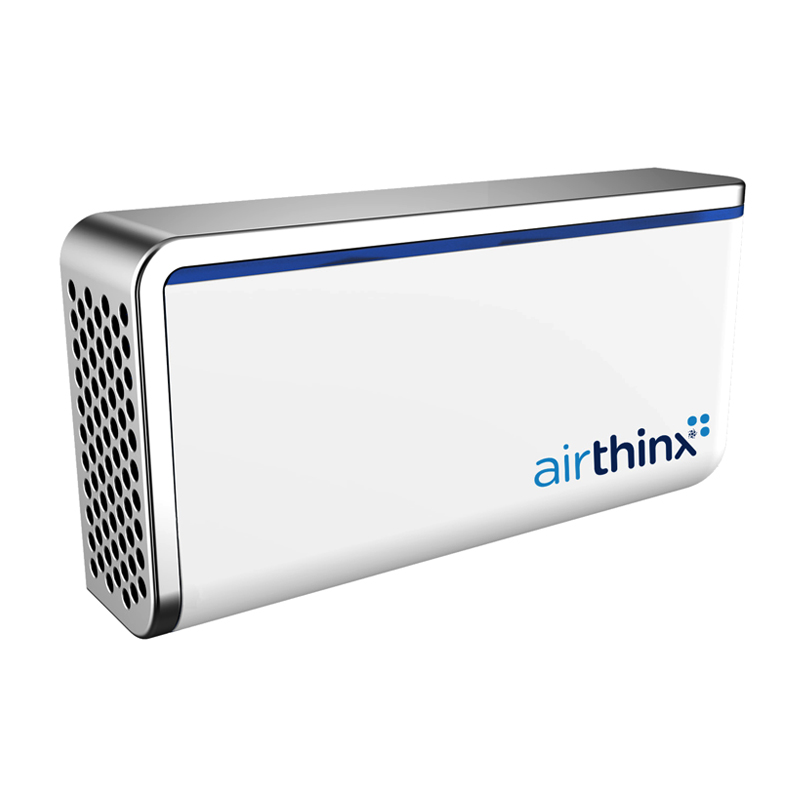

Indoor Air Quality (IAQ) Monitor

Airthinx's Indoor Air Quality monitor is the first Internet of things (IoT) device that delivers simultaneous real-time measurements of Particles (PM 1, PM 2.5, and PM 10), Gasses (VOCs, CO2, and CH2O), and Environmental Conditions (Temperature, Humidity, and Pressure) with the level of accuracy of an industry standard reference instrument, at a fraction of the cost. The portable monitor packs all of these sophisticated features into a modern lightweight product designed to work right out of the box-no need for configuration. Once mounted to any wall, it is always connected to the cloud and provides the user with access to all their data anytime, anywhere directly from the web.

The Airthinx IAQ solution is developed and powered by Netronix's IoT platform and that ensures the highest standards of security, reliability, and scalability of the network. This enables the rapid deployment of devices in any indoor environment regardless of the infrastructure of the building.

Indoor Air Quality (IAQ) Monitor Application
? Buildings
? Healthcare
? Residential
? Transportation

Indoor Air Quality (IAQ) Monitor Specifications

PM Sensor
	PM1, PM2.5, PM10	0.3~1.0; 1.0~2.5; 2.5~10 μm
	Effective Range	0~500 μg/m3
	Resolution	1 μg/m3
	Efficiency	98%>=0.5μm
	Maximum Consistency Error	±10% @100~500 μg/m3
	Standard Volume	0.1L
Gas Sensor
CH2O	Effective Range	0~1 mg/m3
	Resolution	0.001 mg/m3
	Maximum Error	<5% FS
CO2	Effective Range	0~3000 ppm
	Resolution	1 ppm
	Maximum consistancy Error	±50ppm+5%FS
	Single Response Time	< 3 sec.
	Total Response Time	≤ 25 sec.
TVOC	Effective Range	1 ~ 30 ppm of EtOH
TVOC	Sensitivity	0.15 ~ 0.5 Rs (10ppm of EtOH)/ Rs (air)
Environmental Sensors
Temparture	Range	0 - 99 °C
	Resolution	0.1 °C
	Maximum Error	±0.5 °C
Humidity	Range	0-99 %RH
	Resolution	0.1 %RH
	Maximum Error	±2 %RH
Barometer	Range	300-1100 hPa
	Resolution	±0.12 Pa
	Maximum Error	±1.3 Pa
Communications
	Cellular	GSM/GPRS/EDGE 850, 900, 1800, 1900 MHz
		UMTS/HSPA 800/850, 900, AWS 1700, 1900, 2100 MHz
	WiFi	802.11 b/g
	Bluetooth	Bluetooth 4.0
	Mesh	Zigbee, LoRa
	GPS	Sensitivity > -165dBm, 3m Accuracy, A-GPS
	Antenna	Built-in (GPRS, 3G, GPS, Zigbee, Bluetooth, LoRa)
	SIM Card	Built-in
General
	Input Voltage	5 VDC (micro-USB)
	Power	0.6 Watt
	Operating Temperature	-30 °C to 75 °C ( -22 F to 167 F)
	Accelerometer	16g (13-bit resolution)
	Dimensions (LxWxD)	4.3in (110mm) x 2.6in (66mm) x 1.2in (30mm)
	Weight	0.4 Lbs (0.18 kg)
	Certifications	CE, FCC, PTCRB
