Rigorous Industry Temperature and Humidity Transmitter - JWSK-6

? Power voltage: 24VDC, 24VAC
? ±0.5°C, ±3.0%RH or ±2.0%RH Accuracy
? Wide temperature fields, -40~120°C
? Current Three-wire 4-20mA, 0-5Vdc, RS-232/485
? Response time?: <15s (wind speed >1m/s)?
? Long-term stability?: <0.1°C/year, <1%RH/year?
? Operating temperature: -20°C ~ 70°C for transmitter, -40°C ~ 120°C for sensor.
? Operating humidity: 5%RH ~ 95%RH?

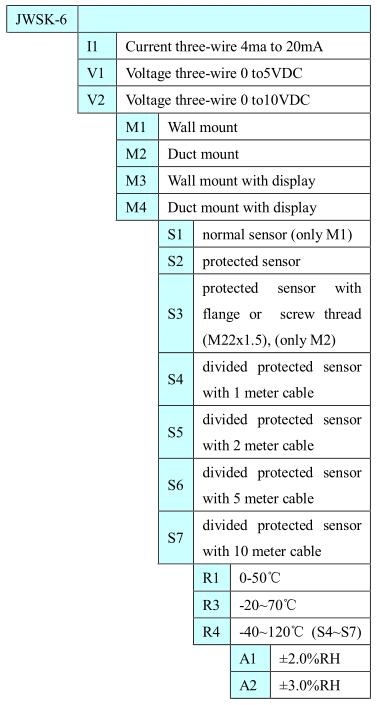

Model Number: JWSK-6
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

JWSK-6 Temperature and Humidity Transmitter Introduction
This series of products belongs to industrial products. The temperature measurement range from -40°C to +120°C. It has reliable performance and long service life, fast response speed, wide temperature range of humidity measurement and the characteristics of low price and high precision in similar products. Probe can resistant to dew.

JWSK-6 Temperature and Humidity Transmitter Use
The model JWSK-6 series product is a temperature and humidity transmitter in the industrial fields with high acquisition, wide temperature and air dust environment. It converts the temperature and humidity of air to stand electrical signals (e.g. 4-20mA, 0-5VDC, RS-232/485) for auto control system or remote data acquisition system. It’s extensively used for fields such as smart building, factory, telecommunication, electric power, petrifaction, environmental protection, papermaking, metallurgy, foodstuff, medical treatment etc.

JWSK-6 Temperature and Humidity Transmitter Characteristic
? Wall mount or Duct mount Industrial Transmitter
? ±0.5℃, ±3.0%RH or ±2.0%RH Accuracy
? Wide temperature fields, -40~120℃
? Current Three-wire 4-20mA, 0-5Vdc, RS-232/485
? CE and Exia II CT6 Certifications

JWSK-6 Temperature and Humidity Transmitter Performance Specifications

Power voltage	24VDC (18-30VDC) 24VAC (18-30VAC)
Accuracy (25°C)	Temperature: ±0.5°C (-40°C ~ 120°C) Humidity: ±3.0%RH or ±2.0%RH
Output	Current two-wire 4 to 20mA (Load <500Ω); Voltage 0-5VDC, (Load >1KΩ)
Response time	<15s (wind speed >1m/s)
Long-term stability	Temperature: <0.1°C/year, Humidity: <1%RH/year
Operating environment	-20°C ~ 70°C for transmitter, and -40°C ~ 120°C for sensor. 5%RH ~ 95%RH
Mounting dimension	Wall-mounted 117mm x 86mm x 41mm (White ABS)
