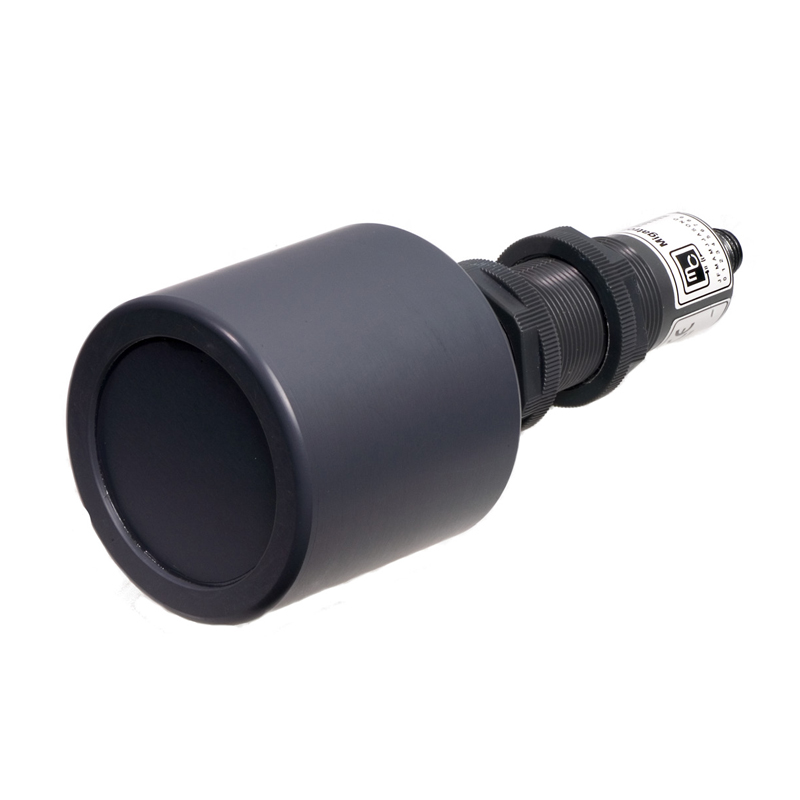

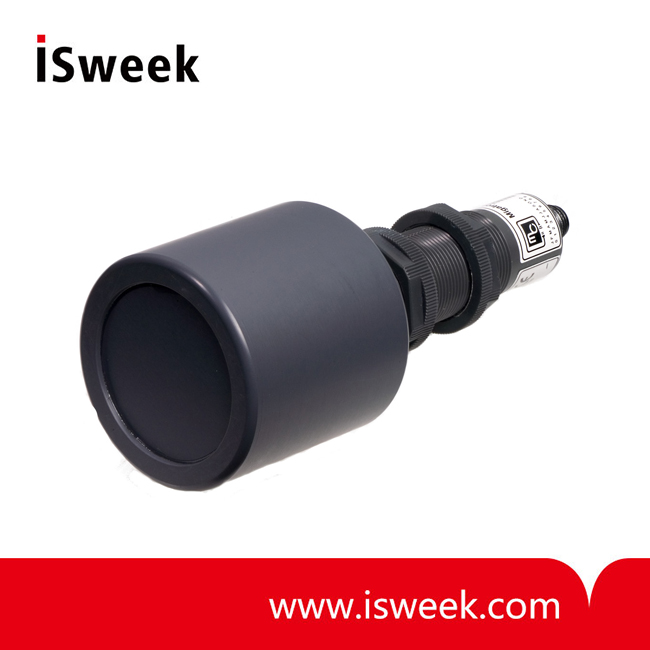

Self-contained Ultrasonic Level Sensor - RPS-4000

? Operational Range: Adjustable 2 - 40'
? Power Input: 20 - 30VDC Reverse Polarity Protected
? Input Current: 125mA
? Ambient Temperature: -20 - 60oC or -5 - 140oF
? Humidity: 0 - 95% Non-Condensing
? Enclosure: PVC housing with PVC sensing face
? Transducer Frequency: 38kHz

Model Number: RPS-4000
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

RPS-4000 Ultrasonic Level Sensor Features

? Simple Calibration
? Non-Contact Measurement
? Temperature Compensation
? Analog 4-20mA Output
? Sensitivity Control
? Self-Contained
? LED Indicator
? Quick Disconnect
? Easy Installation
? Microprocessor Design

RPS-4000 Ultrasonic Level Sensor Description
The RPS-4000 self-contained long range Ultrasonic Sensor provides level control of both liquid and bulk materials. This gives the user a viable alternative to bubblers, floats, capacitance probes, and pressure transmitters. The RPS-450 product line features solid state construction including the solid state relay outputs. The sensor operates in the ultrasonic spectrum and is therefore not heard. For initial setup purposes, a built in potentiometer and LED indicator are provided.

The LED indicator illuminates when the ultrasonic wave from the sensor is reflected back to the sensor within the desired range. The sensor provides precise proximity or level sensing regardless of target color, density, or transparency. The sensor is equally effective on liquid, metal, plastic, or glass targets.

RPS-4000 Ultrasonic Level Sensor Specifications

Operational Range	Adjustable 2 - 40'
Power Input	20 - 30VDC Reverse Polarity Protected
Input Current	125mA
Ambient Temperature	-20 - 60oC or -5 - 140oF
Humidity	0 - 95% Non-Condensing
Enclosure	PVC housing with PVC sensing face
Outputs	Current Sourcing Analog Output 4 - 20mA Inverted & Non-Inverted Load 0 - 500 Ohm Maximum Short Circuit Protected
Transducer Frequency	38kHz
Transmit Time	Transmit time equals the sensors maximum distance x 10ms. For example if the maximum programmed distance is 10' the transmit time is 100ms.
Weight	15 ounces

PART NUMBER	RANGE	OUTPUT / DESCRIPTION
RPS-4000	2 - 40'	4 - 20mA Analog - Cable Sold Separately
F32-5001272 F32-5001274		2 meter QD Cable, 1/2"-20 6-Pin 22 AWG 6 meter QD Cable, 1/2"-20 6-Pin 22 AWG
